NMB Minebea UK - New washroom facility

Designed to make better use of space

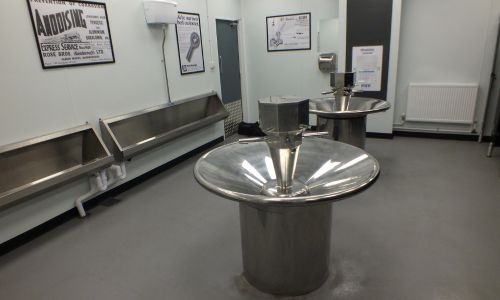

Stainless steel wash stations and urinals from Leeds manufacturer, Pland have been installed in a recently refurbished site wash room facility at Bearings producer, NMB MInbea UK in Lincoln.


Refurbishment of the facility, which caters for the companies 263 on site staff, was completed at the end of 2022 and these men’s washroom facilities were completed with product specified and supplied by Pochins in Oakham.  Pochins selected Pland’s special sized urinals for the job along with two circular wash stations, designed to make the best use of space.


Minebea UK is part of MinebeaMitsumi Inc of Japan. In the UK they manufacture Rod end and Spherical bearings and components, with a special core competence in landing gear bearings, aerospace bearings, tram coupling and special vehicle suspension bearings. The staff that work at NMB have a specialist skillset and work 24/7 shifts, so it was important to install robust products in these work facilities that cater for so many staff.


Stainless steel is a perfect material to produce products for a washroom facility. It is a naturally durable and hygienic material that’s maintenance free, very easy to keep clean and 100% recyclable.

Sherwood Pines Campsite
Sherwood Pines Campsite

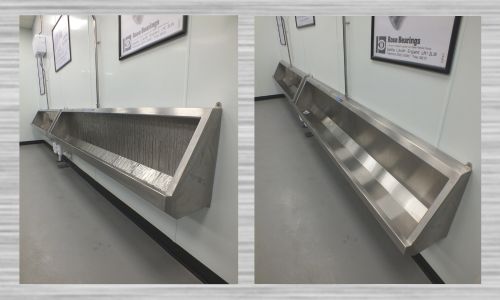

Two Fife Trough Urinals 2400mm long made from 304 grade stainless steel

Sherwood Pines Campsite Dog Wash Unit

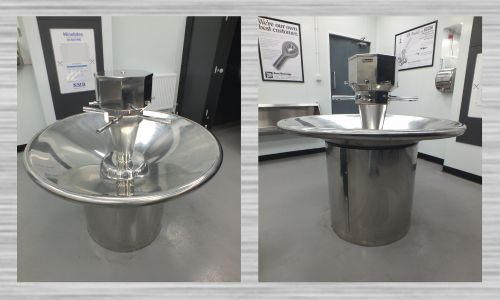

Two Venice Circular Wash Stations each catering for 4-6 people

Sherwood Pines Campsite Dog Wash Unit

The central wash stations are a great use of space for a washroom catering for many users

Sherwood Pines Campsite Dog Wash Unit

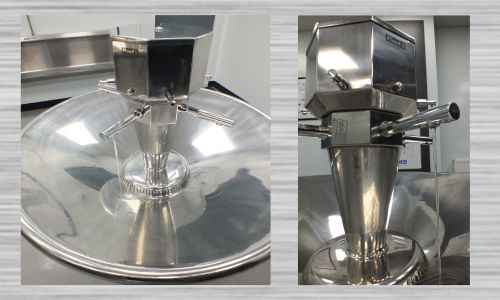

The centre column contains a large refillable soap tank and taps can be hand, foot or sensor operated

In this facility, Leeds based manufacturer Pland, supplied two Fife trough urinals,  2400mm long and made from 304 grade stainless steel. These urinals are available as standard from 1200mm to 3050mm in length.  The Fife Trough urinal pack is supplied complete with plastic cistern, stainless steel sparge flushing pipe, the sparge locating below an integral valance and 2” domed plastic urinal waste. Multiple units and L-shaped configurations can be supplied and with a top or back inlet.


Two Venice Circular wash stations were also installed, each catering for 4-6 people at any one time. The Venice products have a radiused outer edge and are supplied on a pedestal with service access panels. The centre column contains a large refillable soap tank with plungers and features either hand operation with non-concussive taps, foot operated taps or sensor operation taps.  They are perfectly suited for any commercial washroom. The unit is pre-plumbed and fitted with a thermostatic mixer valve and a pressure reducing valve making the unit easy to install and commission. The base can be straight or in this case conical shaped and the soap tank takes any liquid soap. Here the unit was made with sensor taps, ideal as the ‘no-touch’ technology improves hygiene and reduces the spread of germs and bacteria. The taps are also highly efficient with low water usage reducing water cost and water heating energy costs and they also prevent scalding as the water temperature can be set using the thermostatic mixer valve.


“We are very pleased with the new facilities.” Said Josh Holt, Maintenance Department Supervisor at NMB. “The overall design works well for this busy washroom area and we have had really positive feedback on the choice of Pland product. It looks good, works well and provides a very practical solution.”


Key Products

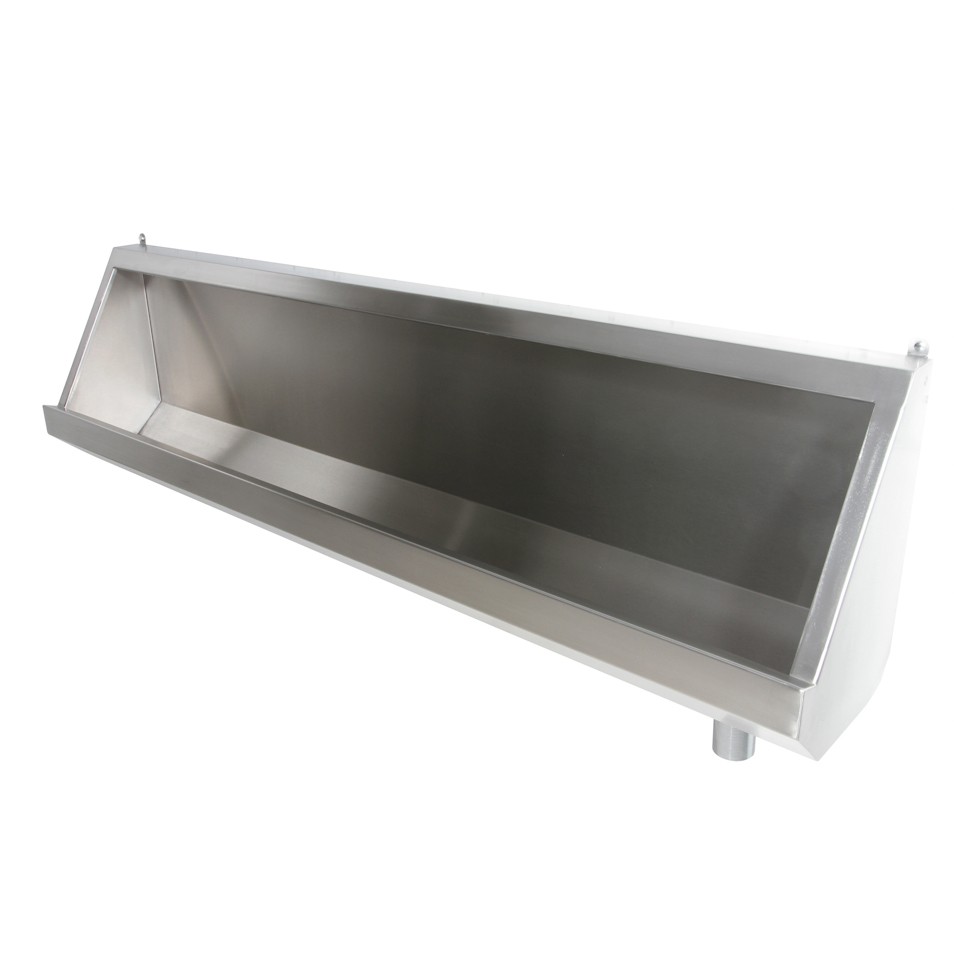

Fife Trough urinal 2400mm left hand outlet-0


Fife Urinal available as standard in sizes from 1200mm – 3050mm length

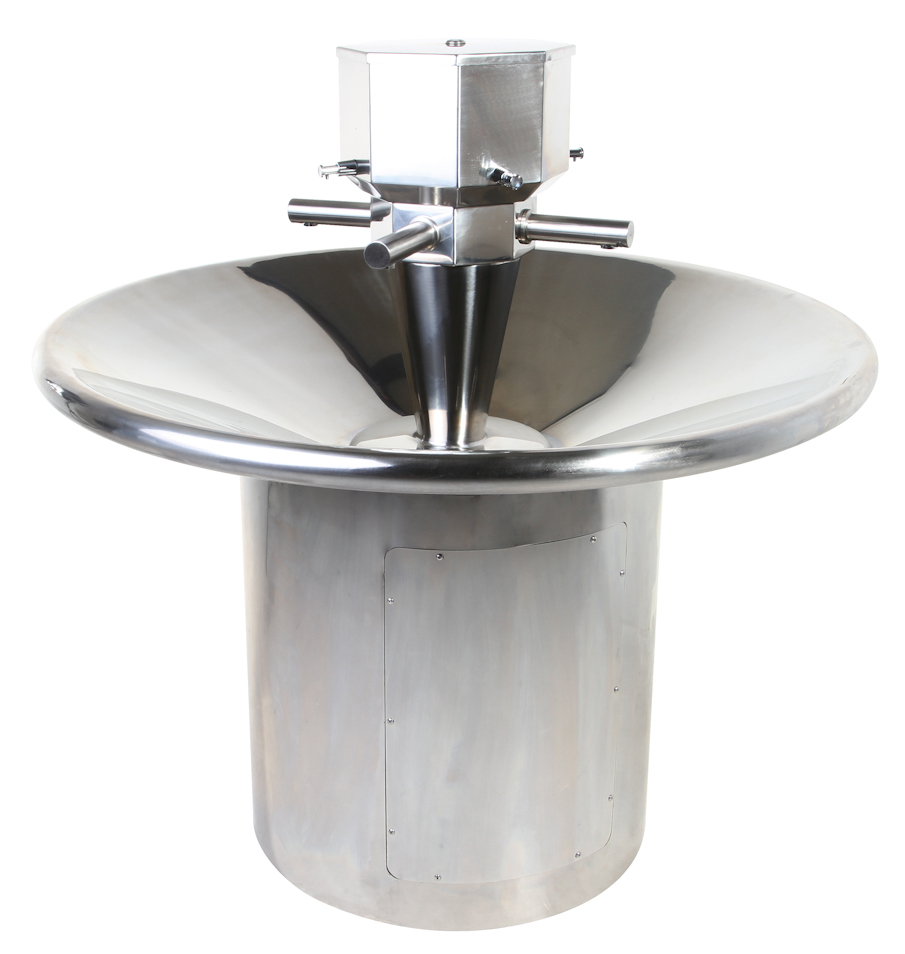

Venice Circular Washstation-0


Venice Circular Wash Stations perfect for any commercial washroom
