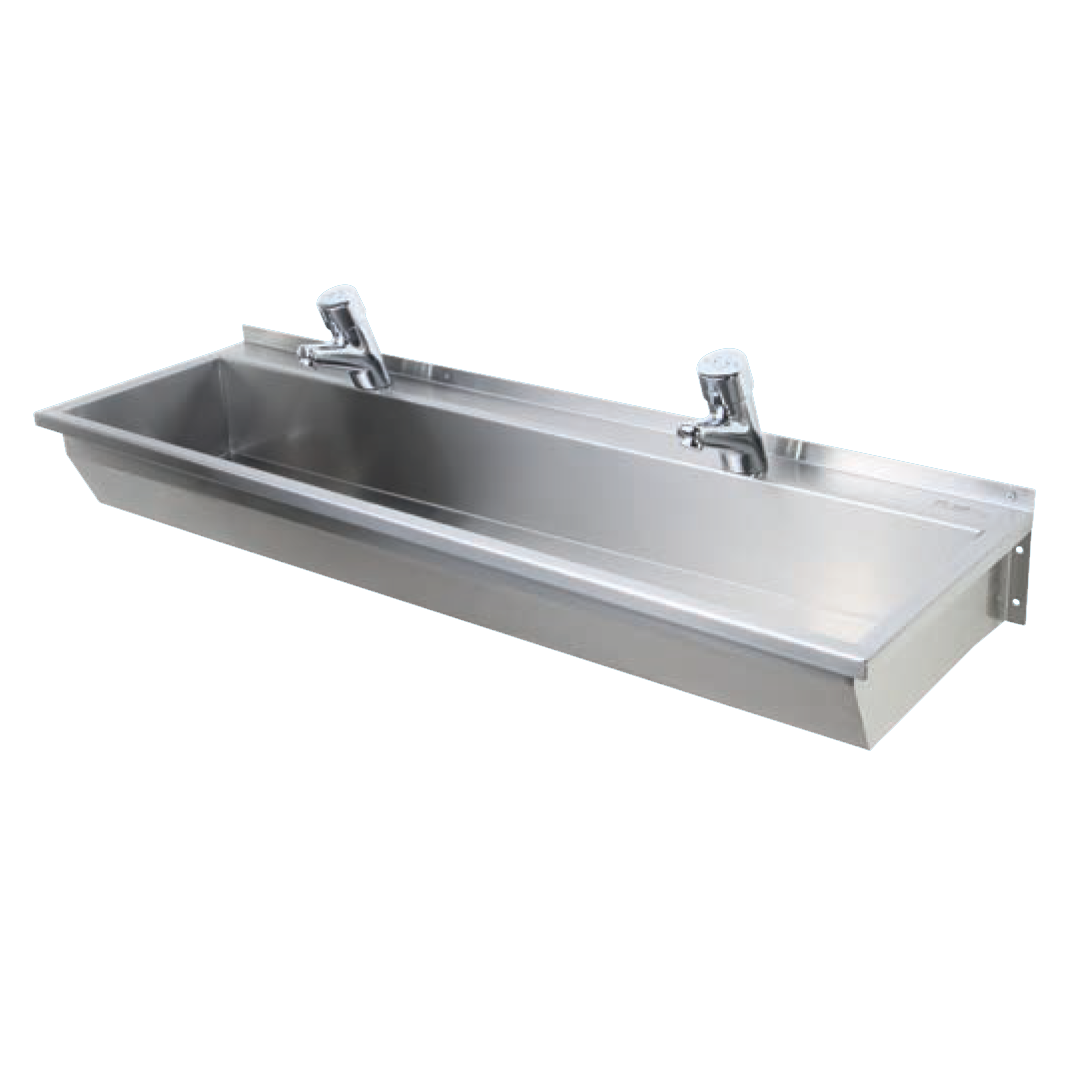

Madeira Stainless Steel Wash Trough
The Madeira Stainless Steel Wash Trough is a versatile and hygienic handwashing solution designed for schools, commercial washrooms, healthcare facilities, industrial environments and public washrooms. Manufactured from high-quality 304 stainless steel with a satin polished finish, it provides exceptional durability, corrosion resistance and ease of maintenance.
Available in a wide range of sizes suitable for one to five users, the Madeira range offers maximum flexibility for projects of all sizes. Its practical design helps improve handwashing efficiency while delivering a clean and professional appearance.
The Madeira can be configured to suit a variety of hygiene and operational requirements, with options including standard wash troughs, integrated splashbacks, knee-operated controls and touch-free sensor-operated systems. Additional options include foot-operated valves, half shrouds, full shrouds and back-to-back configurations for larger installations.
Supplied with a chromium-plated waste and designed for wall mounting, the Madeira provides a reliable and robust solution for busy environments where hygiene, durability and functionality are essential.
Key Features
- Stainless steel wash trough
- Suitable for 1 to 5 users
- 304 stainless steel construction
- Satin polished finish
- Standard or splashback versions available
- Sensor-operated options available
- Knee-operated options available
- Foot-operated options available
- Half and full shroud options available
- Back-to-back configurations available
Specifications
- Range: Madeira
- Product Type: Stainless Steel Wash Trough
- Material: 304 Stainless Steel (1.4301)
- Gauge: 1.2mm
- Finish: Satin Polished
- Waste Outlet: 1½" BSP
- Installation Type: Wall Mounted
- Tap Holes: To Suit Requirements
Available Sizes
| Length | Product Code |
|---|---|
| 1200mm | SAN069-1200-19 |
| 1500mm | SAN069-1500-16 |
| 1800mm | SAN069-1800-17 |
| 2400mm | SAN069-2400-16 |
Available Configurations
- Standard Wash Trough
- Wash Trough with Splashback
- Knee-Operated Wash Trough
- Sensor-Operated Wash Trough
- Foot-Operated Wash Trough
- Half Shroud Option
- Full Shroud Option
- Back-to-Back Configuration
Ideal Applications
- Schools
- Colleges
- Universities
- Healthcare facilities
- Hospitals
- Commercial washrooms
- Industrial workplaces
- Public buildings

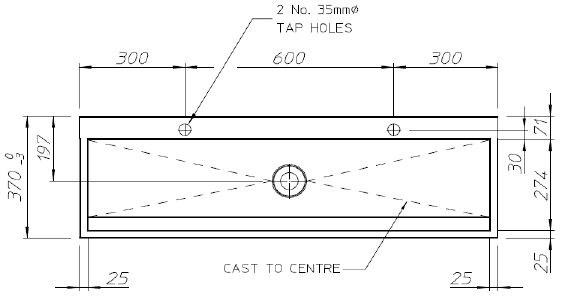

Technical Details
- 1.4301 304 SS
- 1.2 mm
- Satin Polished
- 1 ½"
- 35mm for monobloc taps, pairs of tapholes @ 30 mm available on request
- Wall
