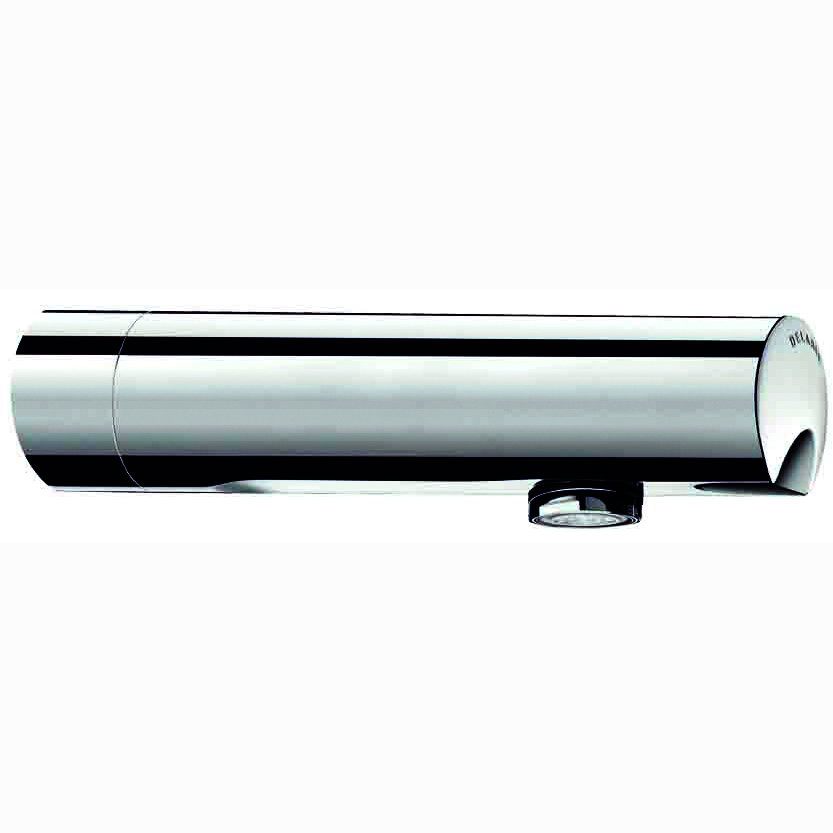

Tweed Electronic Sensor Tap Range
The Tweed Electronic Sensor Tap Range is a versatile collection of touch-free washroom taps designed for schools, universities, commercial buildings, healthcare facilities and public washrooms. Combining reliable infrared sensor technology with water-saving performance, the range helps improve hygiene standards while reducing water consumption.
Manufactured from durable chrome-plated brass, Tweed sensor taps provide dependable long-term performance in high-traffic washroom environments. The touch-free operation helps minimise contact with surfaces, supporting improved hygiene and reducing the risk of cross-contamination.
Each model incorporates an automatic anti-Legionella duty flush that activates after periods of inactivity, helping maintain water quality and reduce stagnation within the system. Adjustable flow rates allow facilities managers to optimise water usage while maintaining user comfort.
The range includes multiple spout lengths and configurations, enabling customers to select the most suitable tap for their washroom design and user requirements. From compact basin installations to longer projection models with side temperature control, the Tweed range provides a flexible solution for a wide variety of projects.
Key Features
- Electronic sensor tap range
- Infrared touch-free activation
- Chrome plated brass construction
- Mains powered operation
- Automatic anti-Legionella duty flush
- Adjustable flow rate
- Anti-block function
- Water-saving operation
- Multiple spout lengths available
- WRAS approved
Specifications
- Range: Tweed
- Product Type: Electronic Sensor Tap
- Material: Brass
- Finish: Chrome Plated
- Power Supply: 230V / 12V Mains
- Control Unit: IP65 Rated
- Connection: M1/2"
- Flow Rate: Preset 3 LPM, Adjustable 1.5 to 6 LPM
- Duty Flush: 60 Seconds Every 24 Hours from Last Use
- Anti-Block Function: Yes
- Approvals: ACS, CE, WRAS, HKWSD
Available Configurations
| Product Code | Description |
|---|---|

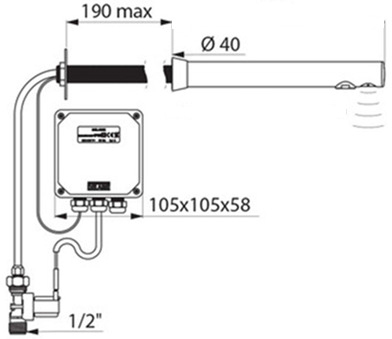

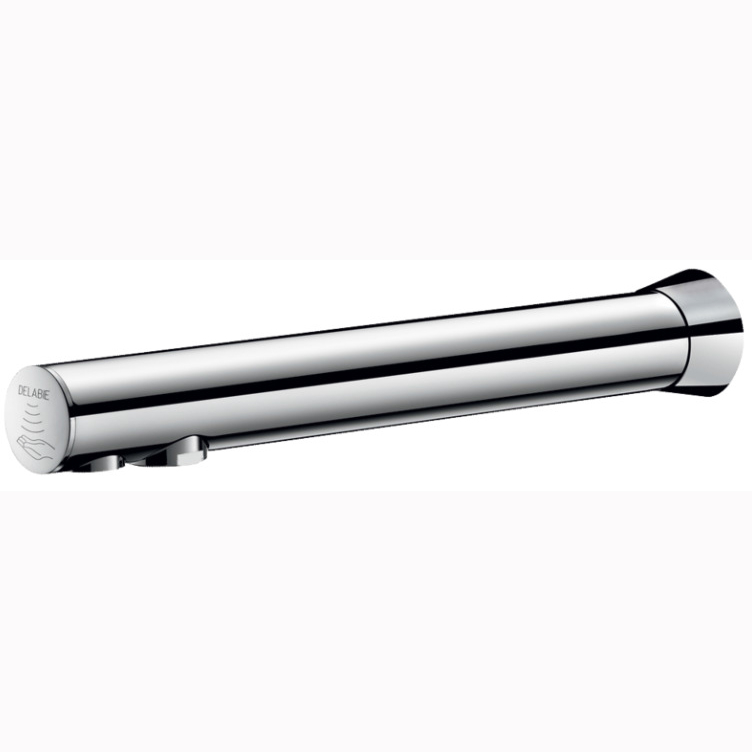

| TP2003 | Sensor Tap, 137mm Projection |

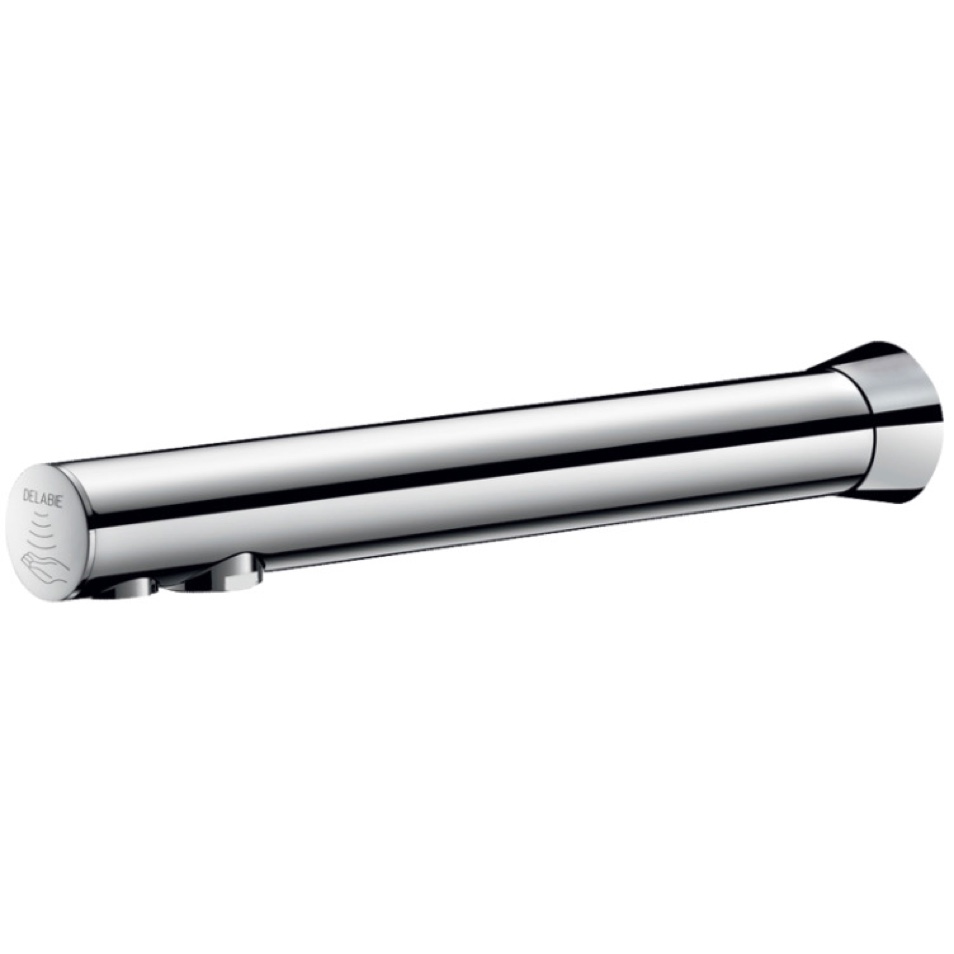

| TP2004 | Sensor Tap, 205mm Projection |

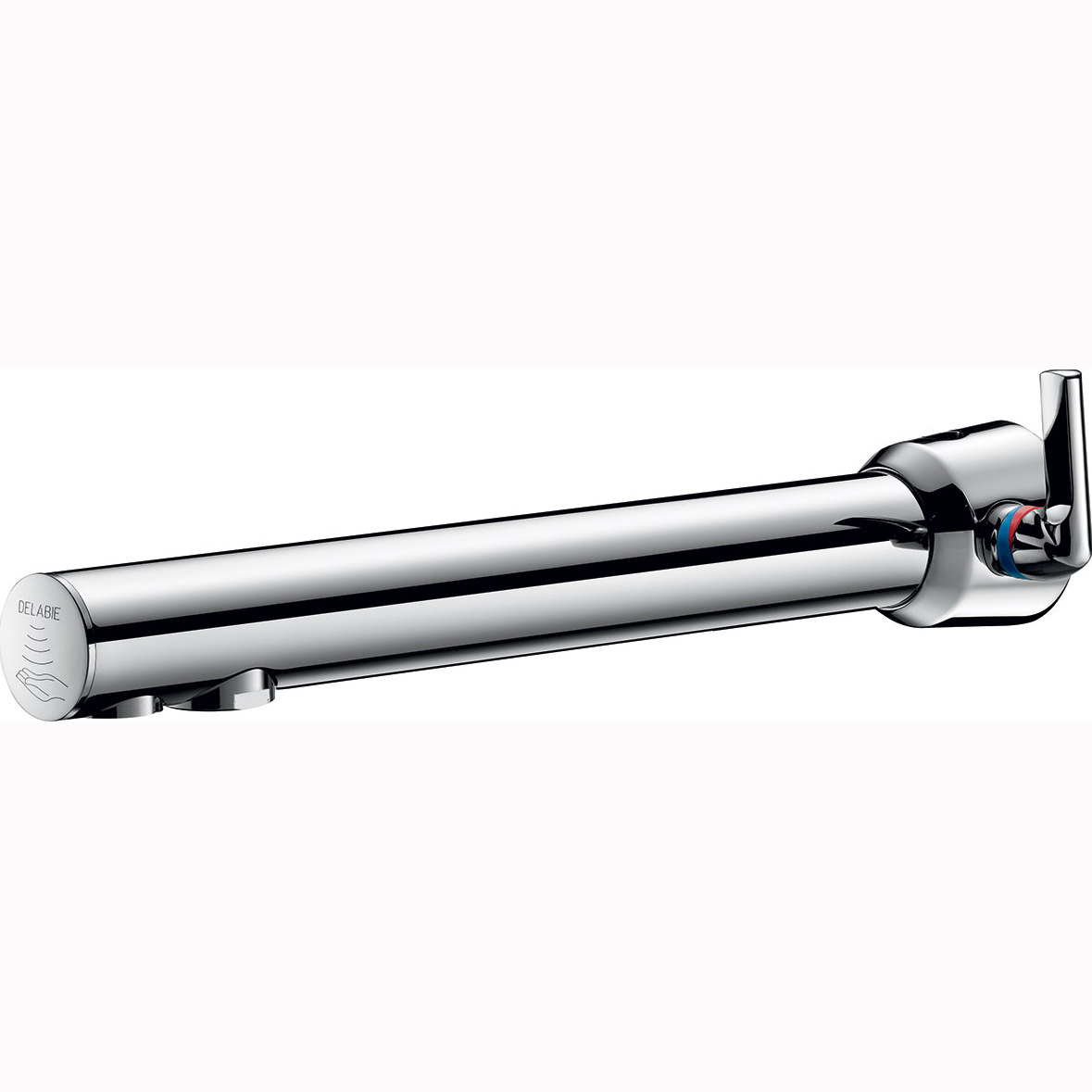

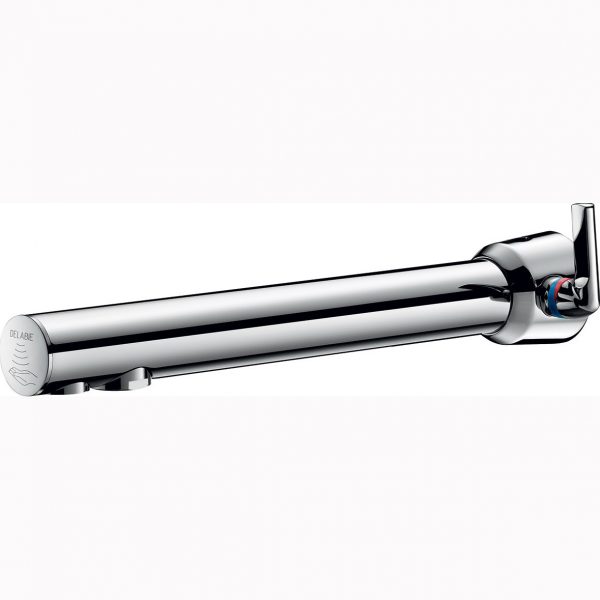

| TP2005 | Sensor Mixer Tap, 225mm Projection with Side Temperature Control |
Ideal Applications
- Schools
- Colleges
- Universities
- Commercial washrooms
- Public buildings
- Healthcare facilities
- Leisure centres
- Office washrooms
Technical Details
- Brass Body
- 230/12 V Mains Supply - IP65 Control
- M ½"
- Pre-Set 3 lmp - Adjustable between 1.5 - 6 lpm
- ACS, CE, WRAS, HKWSD
- Yes
- 205 mm
- 60 seconds 24 hours from last use
