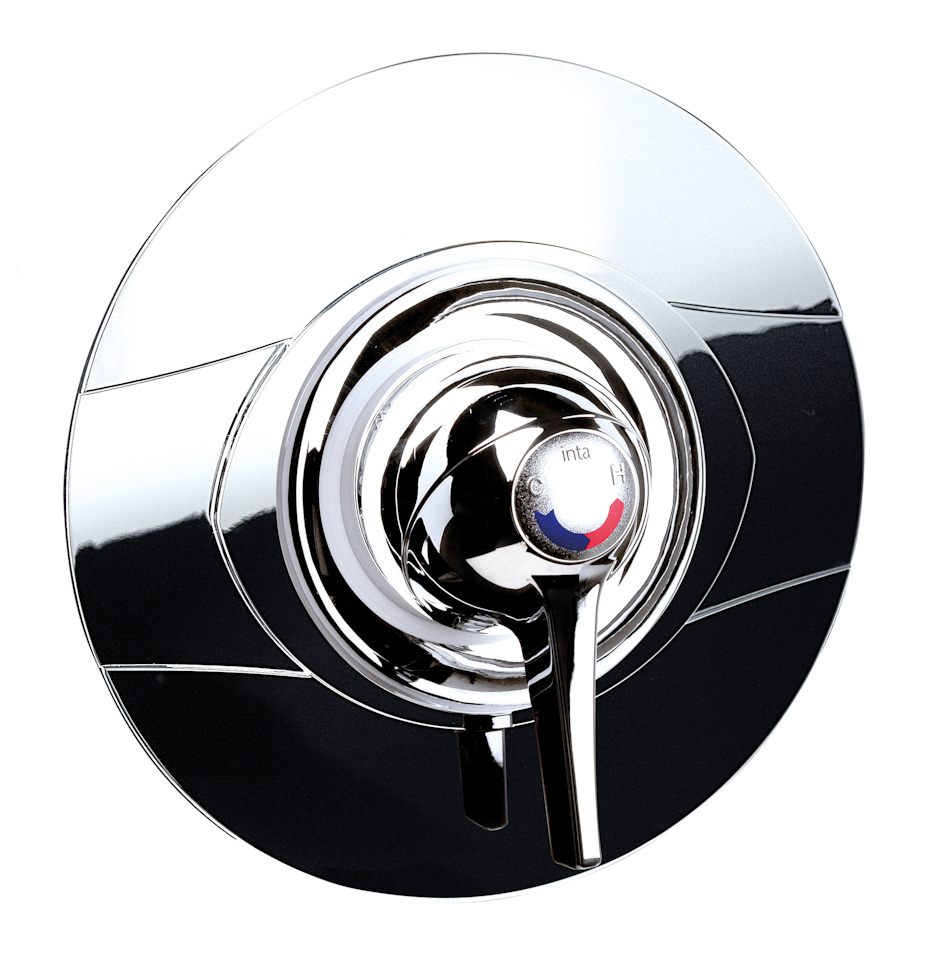

Southwell Thermostatic Sequential Shower Valve

Engineered for compatibility with a variety of water systems, the Southwell valve can be installed with unvented supplies, combi boilers, gravity-fed systems and mains pressure installations. Its inclusive design makes it ideal for healthcare facilities, schools, leisure centres and commercial washrooms.

The thermostatic control technology helps maintain a safe showering temperature while the built-in failsafe mechanism provides protection in the event of hot or cold water supply failure. WRAS approval and TMV3 accreditation provide additional assurance of performance and compliance in commercial and healthcare settings.

With a durable chrome finish and wide operating pressure range, the Southwell Thermostatic Sequential Shower Valve delivers dependable performance, user comfort and reliable temperature control for demanding environments.

Key Features

• Thermostatic sequential shower valve
• Combined temperature and flow control
• Easy-to-use single control operation
• Suitable for users of varying abilities
• Compatible with combi boilers
• Suitable for gravity-fed systems
• Suitable for mains pressure systems
• Hot and cold water failsafe protection
• WRAS approved
• TMV3 scheme approved

Specifications

• Range: Southwell
• Product Code: SHV016
• Product Type: Thermostatic Shower Valve
• Finish: Chrome
• Control Type: Sequential
• Maximum Dynamic Pressure: 5 Bar
• Maximum Static Inlet Pressure: 12 Bar
• Minimum Inlet Pressure: 0.2 Bar
• Maximum Inlet Temperature: 85°C
• Factory Pre-Set Temperature: 43°C
• Minimum Temperature Differential H/C Failsafe: 10°C
• Inlet Connections: 15mm
• Outlet Connections: ½" BSP
• Approvals: WRAS Approved, TMV3 Approved

Ideal Applications

• Accessible washrooms
• Healthcare facilities
• Hospitals
• Care homes
• Schools and colleges
• Leisure centres
• Commercial shower facilities
• Public washrooms
