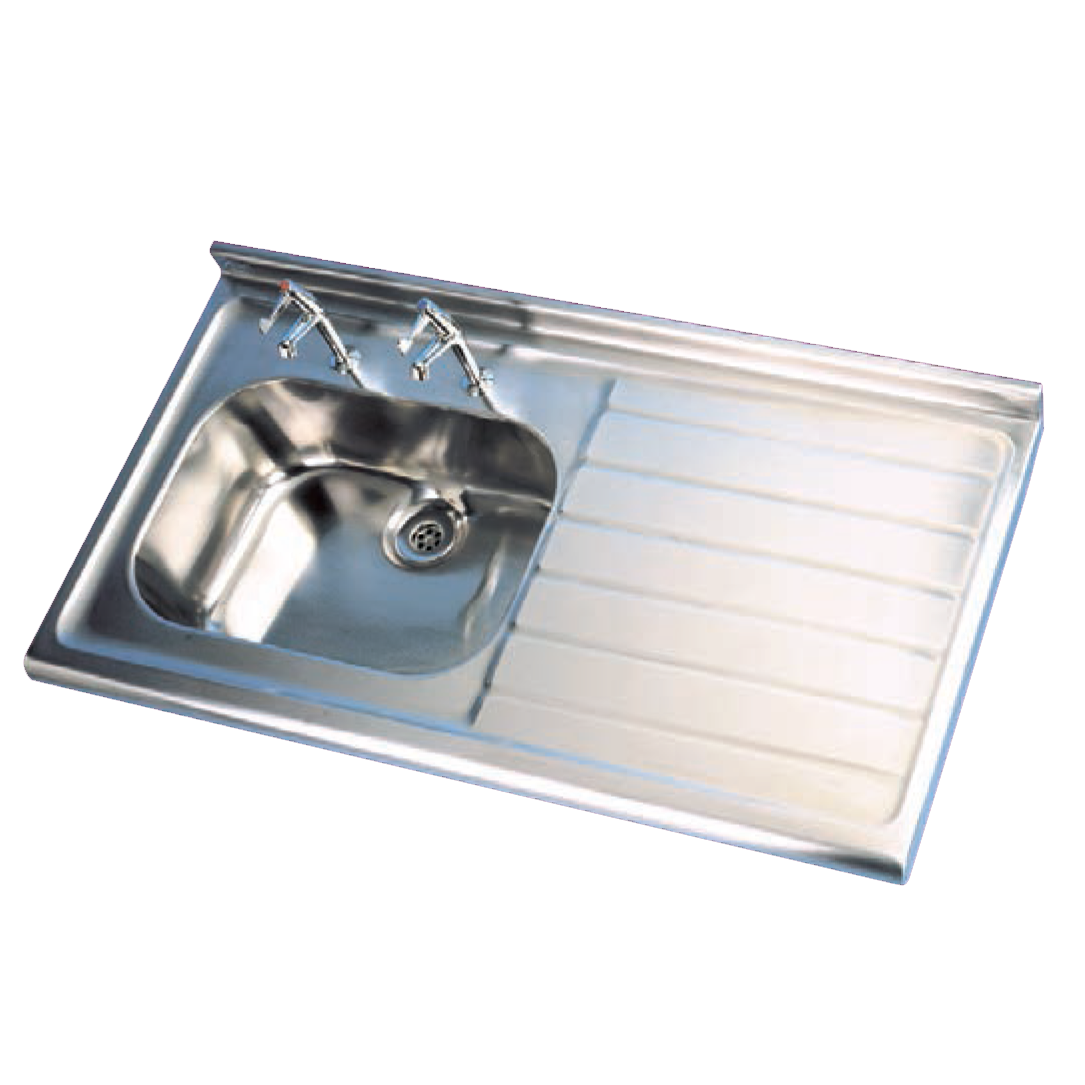

Sicily HTM63 Sit-On Hospital Sinktop
The Sicily HTM63 Sit-On Hospital Sinktop range is designed to provide a durable and hygienic washing solution for hospitals, healthcare facilities and clinical environments. Manufactured from high-quality 304 stainless steel, the range is produced to meet the size and profile requirements of HTM63 fitted storage systems.
Featuring a 550mm projection, each sinktop includes a safe bullnose front edge, 50mm rear upstand and pressed drainer design. The stainless steel construction provides excellent durability and corrosion resistance while supporting effective cleaning and hygiene management in healthcare environments.
Each unit is supplied with sound deadening pads, an integral earth tag and tap hole options at either 180mm or 200mm centres. Sinktops can be fitted to healthcare cabinetry using a timber underframe or supplied with an optional metal underframe when specified with legs or wall brackets.
Available in multiple widths and drainer configurations, the Sicily range offers flexibility for healthcare projects requiring reliable and practical sink installations.
Key Features
- HTM63 sit-on hospital sinktop
- 304 stainless steel construction
- Satin polished finish
- Pressed drainer design
- Safe bullnose front edge
- 50mm rear upstand
- Integral earth tag
- Sound deadening pads fitted
- 180mm or 200mm tap hole centres
- Single and double drainer options
- Compatible with healthcare cabinetry
Specifications
- Range: Sicily
- Product Type: HTM63 Sit-On Sinktop
- Material: 304 Stainless Steel (1.4301)
- Gauge: 1.2mm / 0.9mm
- Finish: Satin Polished
- Projection: 550mm
- Bowl Size: 432mm × 356mm × 180mm
- Waste Outlet: 1½"
- Overflow: Yes (No Overflow Option Available)
- Upstand: 50mm
- Front Edge: 55mm Bullnose Downturn
- Tile Return: 20mm
- Standard: HTM63 / CE

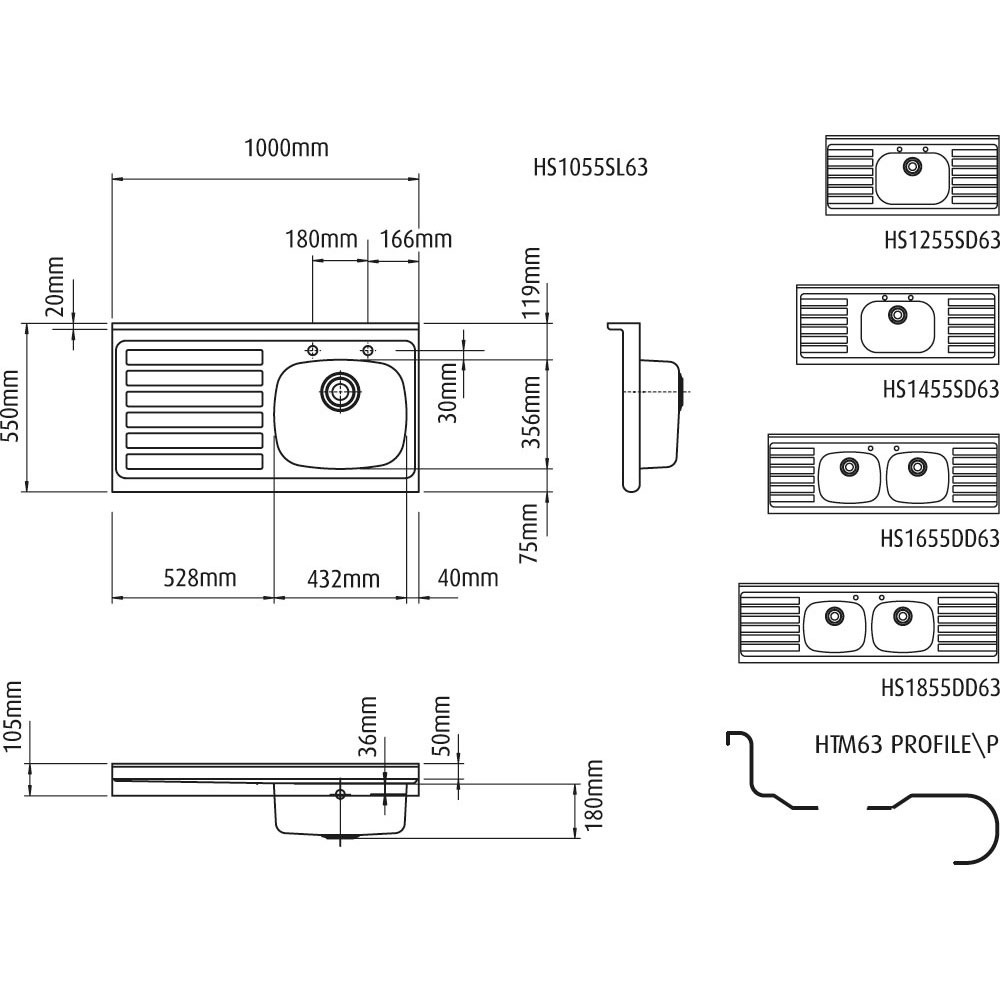

Available Configurations
| Product Code | Configuration |
|---|---|
| HS1055SL63 | Single Bowl, Left-Hand Drainer |
| HS1055SR63 | Single Bowl, Right-Hand Drainer |
| HS1255SD63 | Single Bowl, Double Drainer |
| HS1655SD63 | Single Bowl, Double Drainer |
| HS1855SD63 | Single Bowl, Double Drainer |
Optional Accessories
- WK0187 Waste with Overflow
- WK0075 Waste without Overflow
- SHB0600R Right-Hand Wall Bracket
- SHB0600L Left-Hand Wall Bracket
- SC63/7/MU Stainless Steel Legs and Bearer Brackets
Ideal Applications
- Hospitals
- Healthcare facilities
- Clinical environments
- Medical centres
- Treatment rooms
- Utility rooms
- Healthcare accommodation
- Laboratory support areas
Technical Details
- 1.4301
- 1.2 / 0.9 mm
- Satin Polished
- 432 x 356 x 180 mm Bright Polished
- 1 ½"
- Yes (No overflow optional)
- HTM63 / CE
