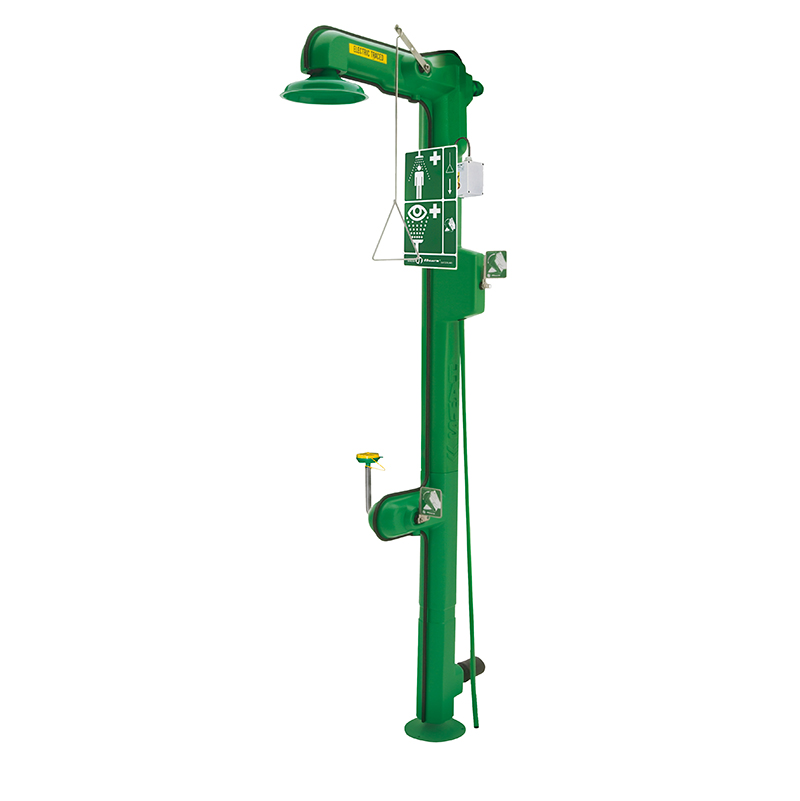

Rolle Freeze Protected Heated Shower and Eye/Face Wash
The Rolle AXION® MSR Freeze Protected Heated Shower and Eye/Face Wash is a premium emergency safety station designed for hazardous environments where freezing temperatures and exposure to dangerous substances present significant workplace risks. Engineered for outdoor installations, chemical plants, laboratories, manufacturing facilities and industrial sites, the unit provides reliable emergency decontamination in even the harshest conditions.
Featuring advanced AXION® MSR technology, the integrated eye and face wash assembly delivers a controlled laminar flow pattern designed to effectively remove contaminants while improving user comfort during emergency flushing. The accompanying AXION® MSR drench shower provides uniform water coverage across the entire spray pattern for improved emergency washing performance.
The heat traced and insulated design incorporates thermostatically controlled heating cable, insulated pipework and a protective outer jacket to help prevent freezing in temperatures as low as -30°F (-34.4°C). An automatic thermal actuator bleed valve further protects the unit against freezing conditions while maintaining operational readiness.
Supplied fully assembled and pressure tested, the Rolle emergency station reduces installation time and maintenance requirements. Its robust stainless steel and galvanised construction provides excellent durability and corrosion resistance for demanding industrial applications.
Key Features
- Freeze protected emergency shower and eye/face wash
- Heated and heat traced design
- AXION® MSR eye and face wash technology
- AXION® MSR drench showerhead
- Uniform water distribution
- Zero Vertical Velocity™ eyewash streams
- Thermostatically controlled heating cable
- Automatic thermal actuator bleed valve
- Insulated pipework and outer jacket
- Suitable for temperatures down to -34.4°C
- Supplied fully assembled and pressure tested
- Corrosion-resistant construction
- Suitable for hazardous outdoor environments
Specifications
- Range: Rolle
- Model: 8317CTFP
- Product Type: Heated Freeze Protected Emergency Shower & Eye/Face Wash
- Construction: Stainless Steel Pipe Stanchion with Galvanised Components
- Floor Flange: Cast Iron
- Insulation: ¾" Insulation with ABS Protective Jacket
- Temperature Control: 120V Thermostatically Controlled Heat Trace Cable
- Freeze Protection: Automatic Thermal Actuator Bleed Valve
- Showerhead: AXION® MSR ABS Plastic Drench Shower
- Eye/Face Wash: AXION® MSR Eye and Face Wash Head
- Installation: Top or Bottom Water Supply
- Temperature Rating: Down to -30°F (-34.4°C)
- Electrical Rating: Class 1, Div 2, Group B, C & D, Temperature Code T6
- Certification: CSA Certified
- Compliance: ANSI Z358.1
Ideal Applications
- Chemical plants
- Industrial facilities
- Outdoor hazardous environments
- Laboratories
- Pharmaceutical facilities
- Petrochemical sites
- Manufacturing plants
- Processing facilities
- Mining operations
- Cold climate installations

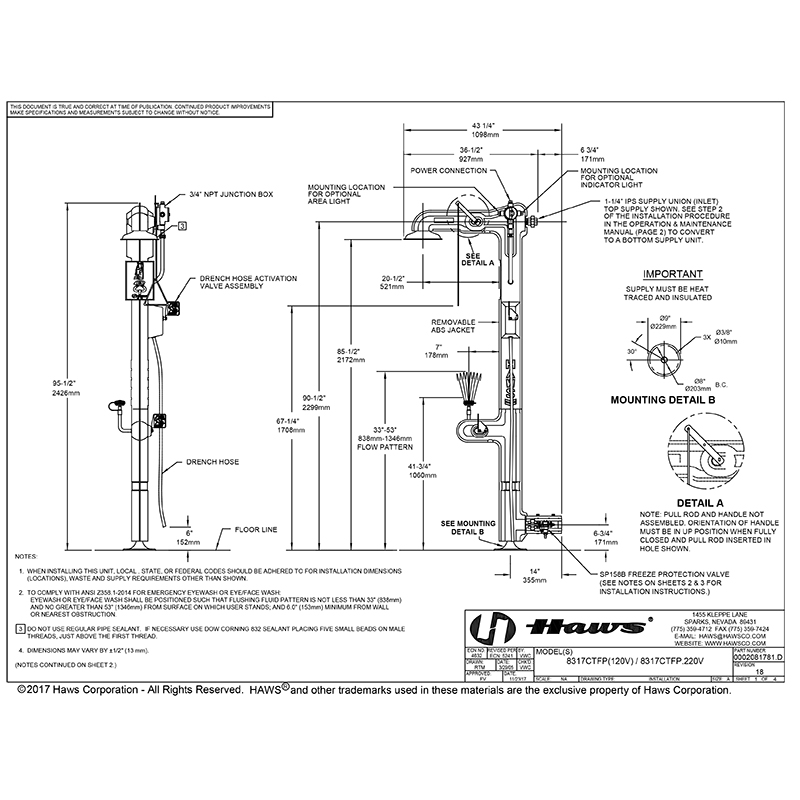

Technical Details
- 1 ¼" SS pipe stanchion Cast Iron floor flange
- ¾" (1.9 cm) insulation and ABS plastic jacket
- Automatic thermal actuator bleed valve
- 120 V thermostatically controlled heat traced cable
- Axion MSR ABS Plastic drench shower
- Axion MSR eye/face wash head
