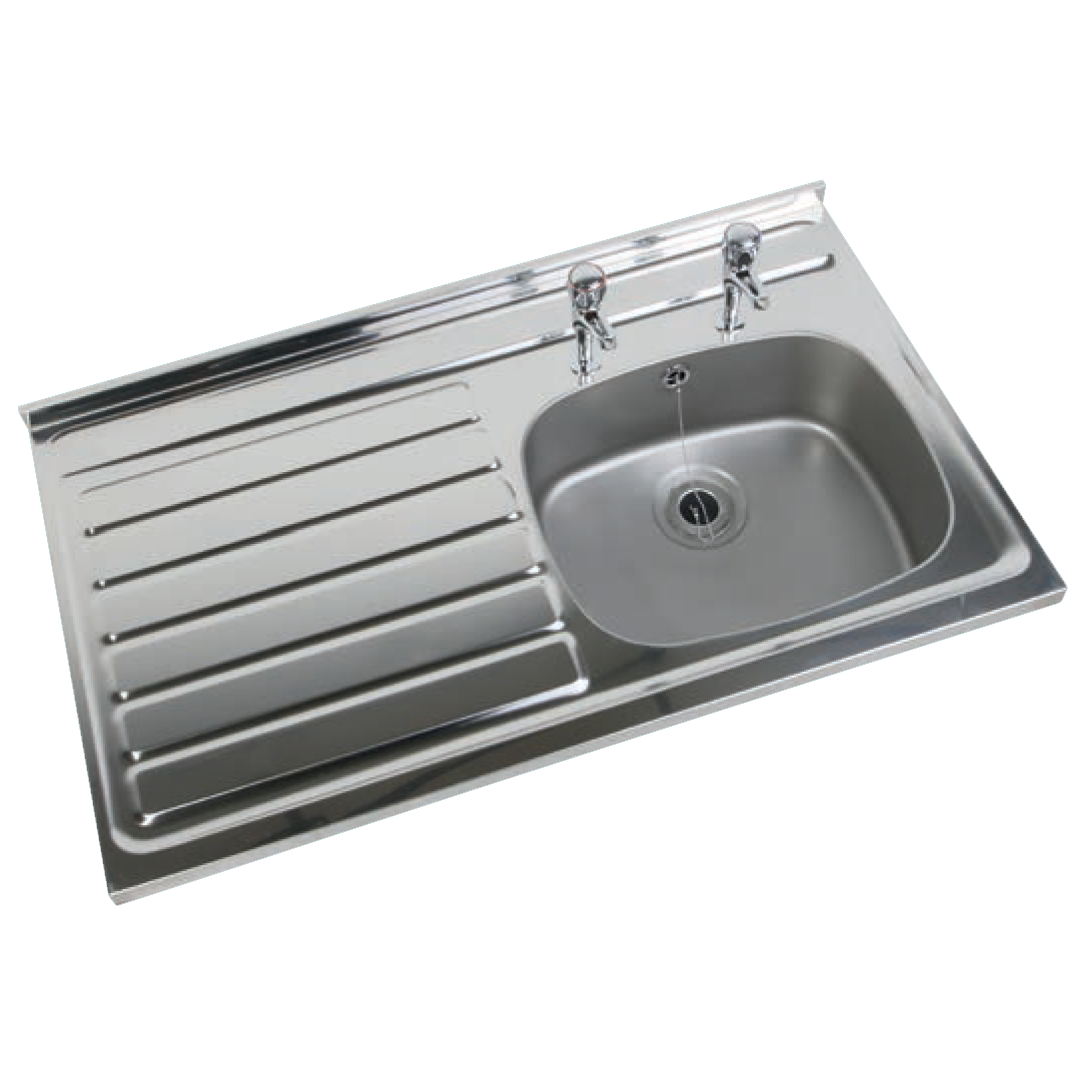

Jura Café Catering Sink Range
The Jura Café Catering Sink Range is a versatile collection of stainless steel catering sinks designed specifically for cafés, coffee shops, canteens, food preparation areas and smaller commercial kitchens. Manufactured from durable 304 stainless steel, the range provides an economical solution for professional catering environments where reliability, hygiene and space efficiency are essential.
Featuring a compact 600mm projection from the wall, Jura sinks are ideal where floor space is limited while still providing the benefits of commercial-grade catering equipment. The range is designed to fit proprietary highline base units and is supplied complete with waste kits, earth tags and sound deadening pads.
Manufactured with a satin polished finish, the sinks provide excellent corrosion resistance and are easy to clean and maintain. Standard models are supplied without taps, allowing flexibility when specifying compatible plumbing fittings and accessories. Stainless steel support stands are also available as optional extras where required.
Available in multiple widths ranging from 1000mm to 2000mm, with left-hand, right-hand, double-drainer and double-bowl options, the Jura range offers practical solutions for a wide variety of commercial catering applications.
Key Features
- Commercial café catering sink range
- 304 stainless steel construction
- Satin polished finish
- Compact 600mm projection
- Suitable for highline base units
- Waste kit supplied
- Earth tag included
- Sound deadening pads fitted
- Corrosion resistant
- Easy-clean hygienic design
- Available in multiple widths and configurations
- Optional stainless steel stand available
Specifications
- Range: Jura
- Product Type: Café Catering Sink
- Material: 304 Stainless Steel (1.4301)
- Finish: Satin Polished
- Projection: 600mm
- Gauge: 0.9mm to 1.2mm
- Waste Outlet: 1½" BSP
- Upstand: 30mm
- Down Turn: 30mm
- Tile Return: 10mm
- Waste Kit: Included
- Tap Holes: Not Supplied
Available Configurations
| Product Code | Configuration | Bowl Size |
|---|---|---|

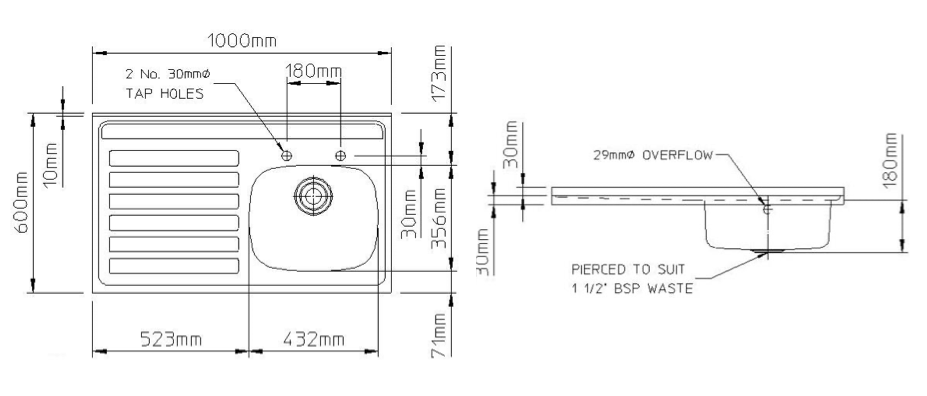

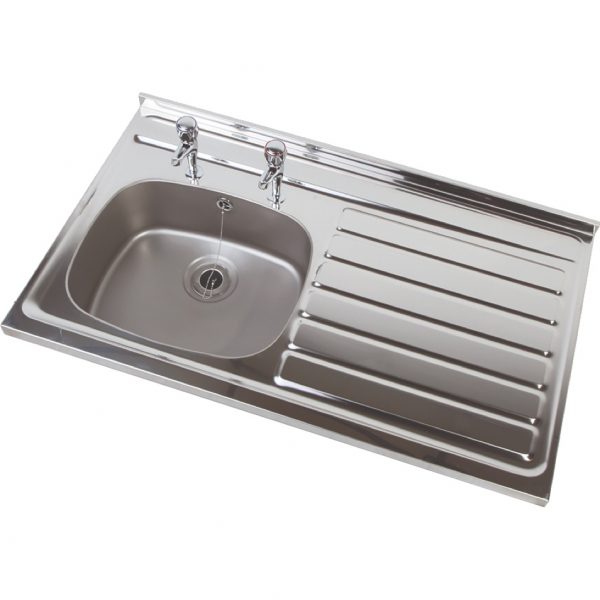

| CC1060SL | Single Bowl, Left Hand Drainer, 1000mm | 432mm × 356mm × 180mm |

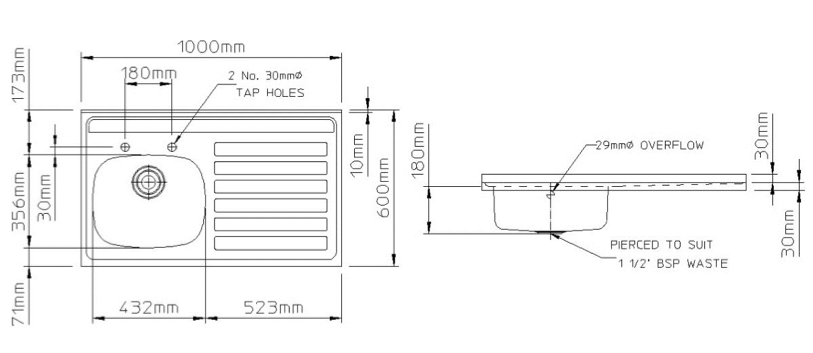

| CC1060SR | Single Bowl, Right Hand Drainer, 1000mm | 432mm × 356mm × 180mm |

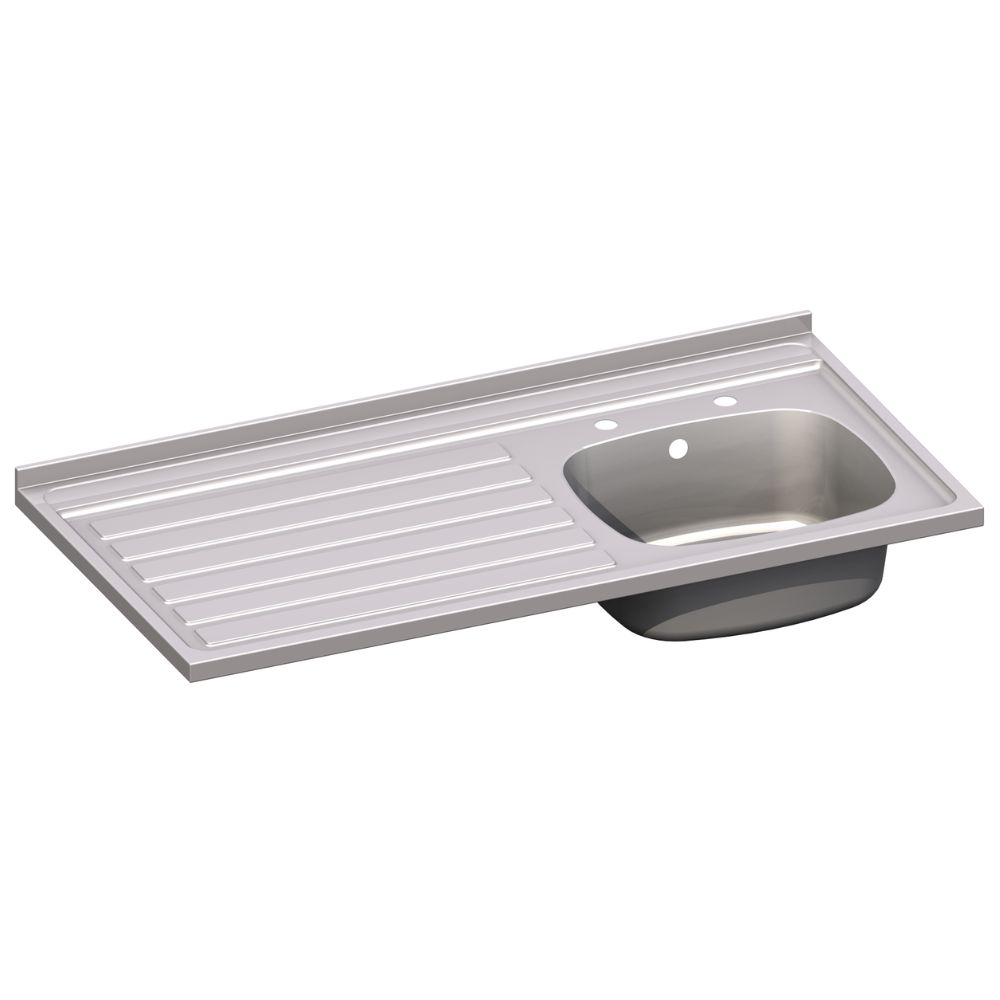

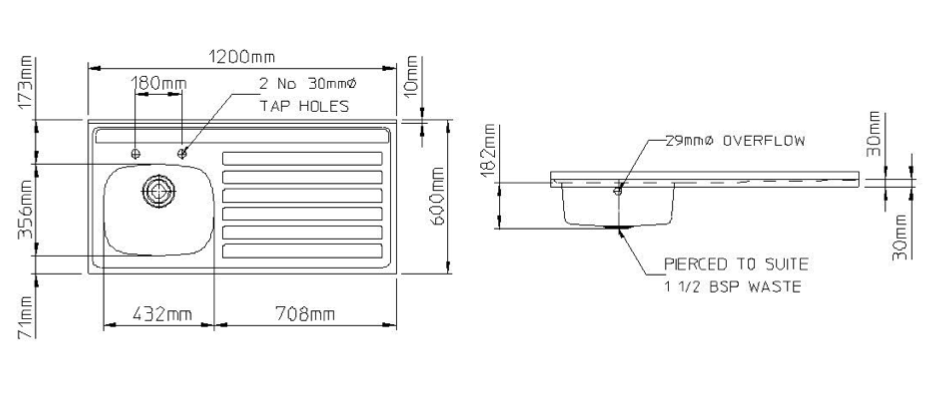

| CC1260SL | Single Bowl, Left Hand Drainer, 1200mm | 432mm × 356mm × 180mm |

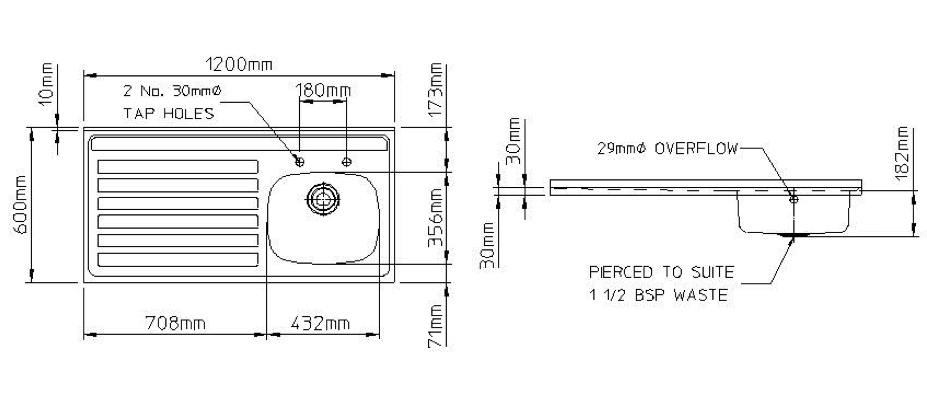

| CC1260SR | Single Bowl, Right Hand Drainer, 1200mm | 432mm × 356mm × 180mm |

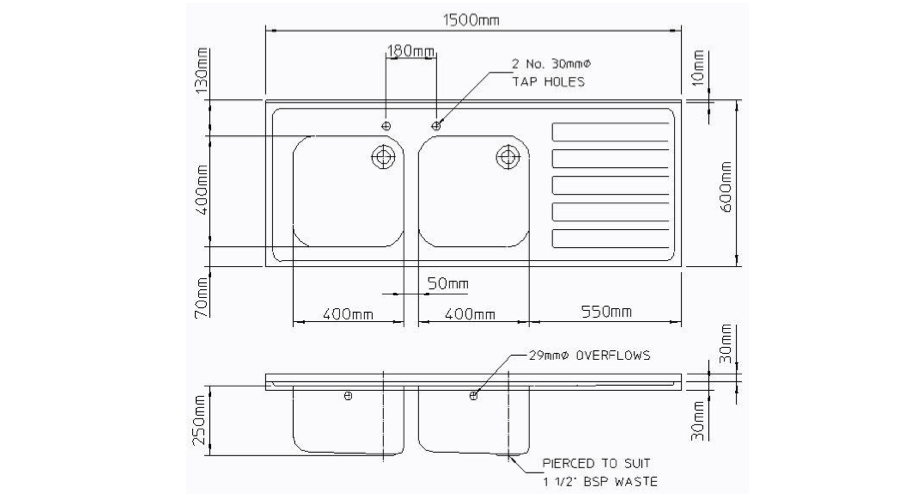

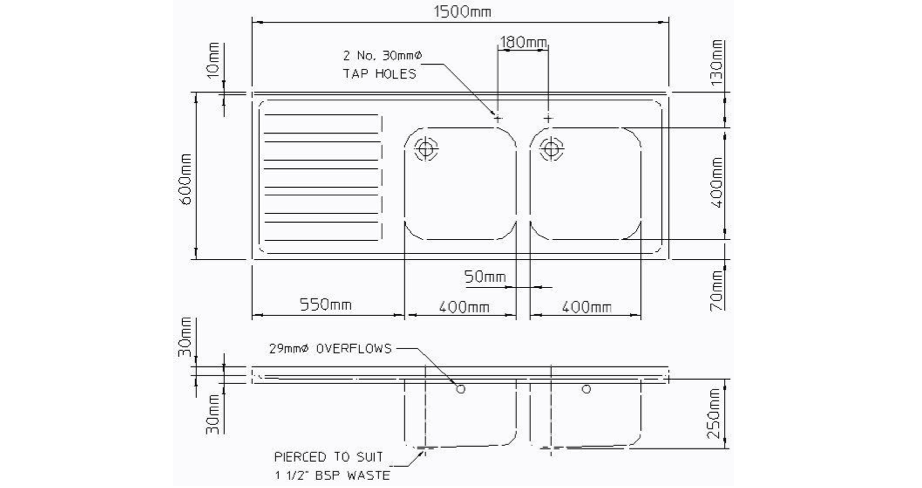

| CC1560DL | Double Bowl, Left Hand Drainer, 1500mm | 400mm × 400mm × 250mm |
| CC1560DR | Double Bowl, Right Hand Drainer, 1500mm | 400mm × 400mm × 250mm |

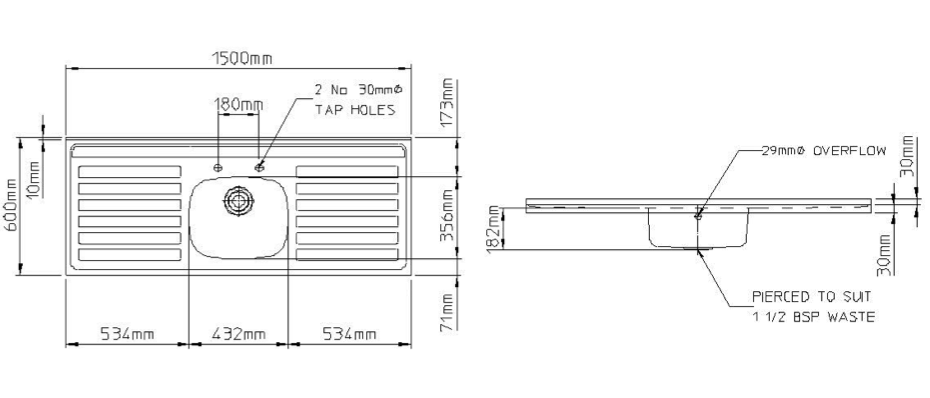

| CC1560SD | Single Bowl, Double Drainer, 1500mm | 432mm × 356mm × 180mm |

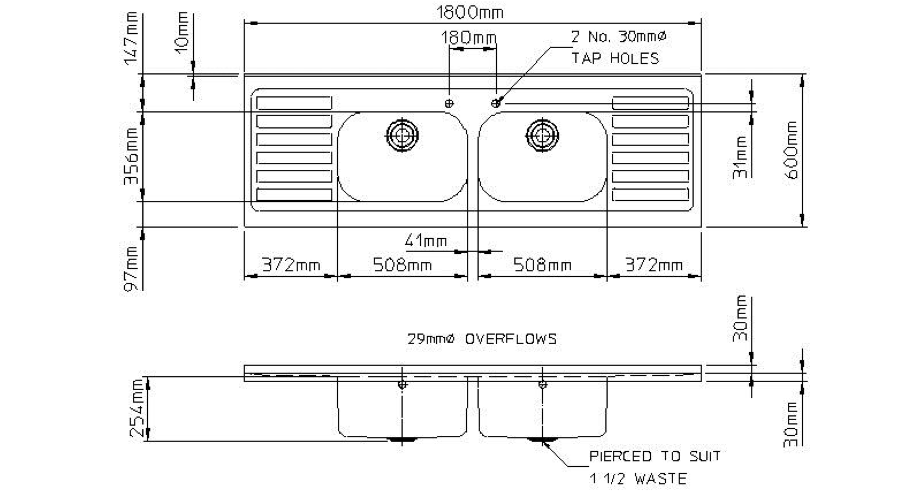

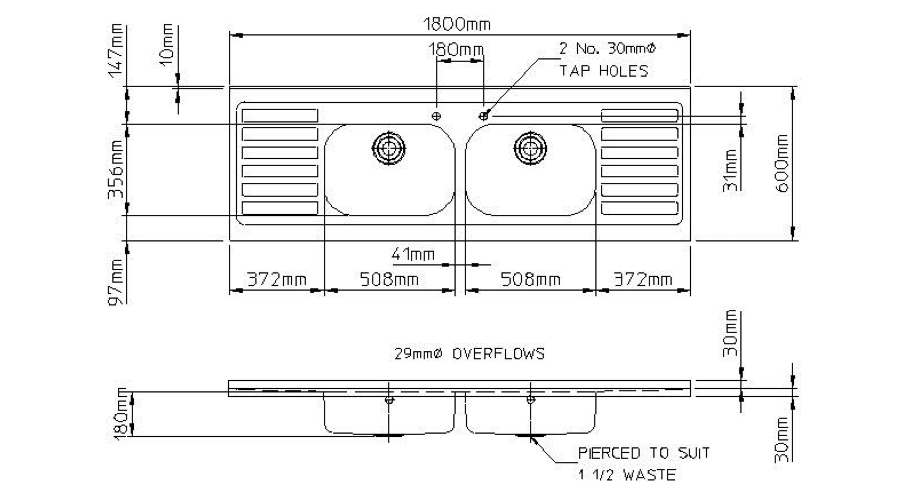

| CC1860DD | Double Bowl, Double Drainer, 1800mm | 508mm × 356mm × 180mm |
| CC1860DD/210 | Double Bowl, Double Drainer, 1800mm | 508mm × 356mm × 250mm |

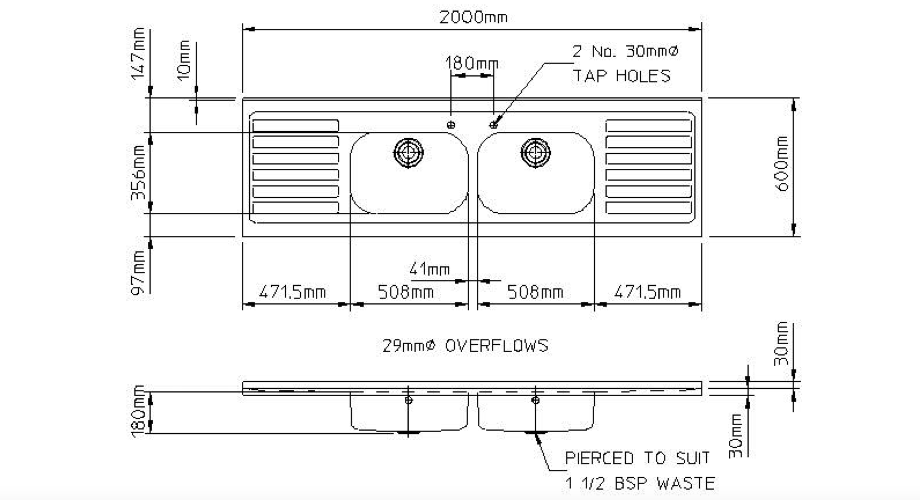

| CC2060DD | Double Bowl, Double Drainer, 2000mm | 508mm × 356mm × 180mm |

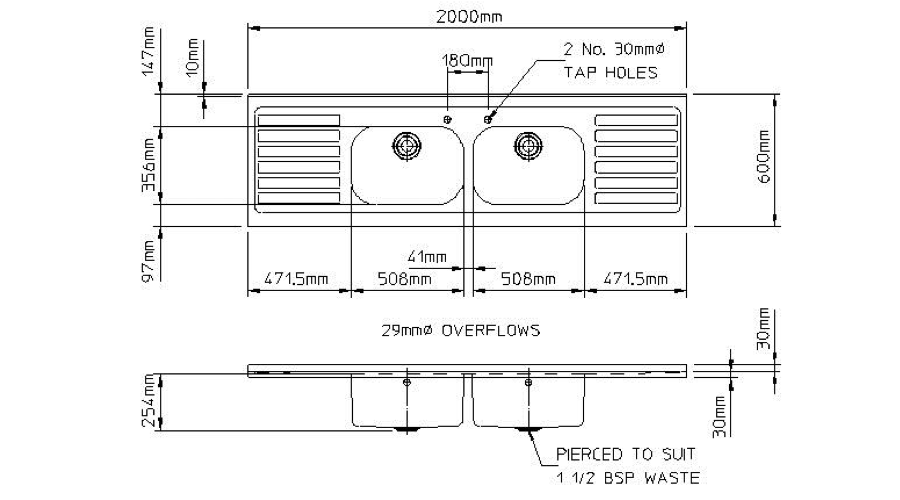

| CC2060DD/210 | Double Bowl, Double Drainer, 2000mm | 508mm × 356mm × 250mm |
Ideal Applications
- Cafés
- Coffee shops
- Commercial kitchens
- Catering facilities
- Food preparation areas
- Restaurants
- Hospitality venues
- School kitchens
- Staff canteens
- Small foodservice operations
Technical Details
- 1.4301 304 SS
- Satin Polished
- 0.9 mm
- 432 x 356 x 180 mm
- 1½" Bsp
- 30 mm
- 30 mm
- 10 mm
