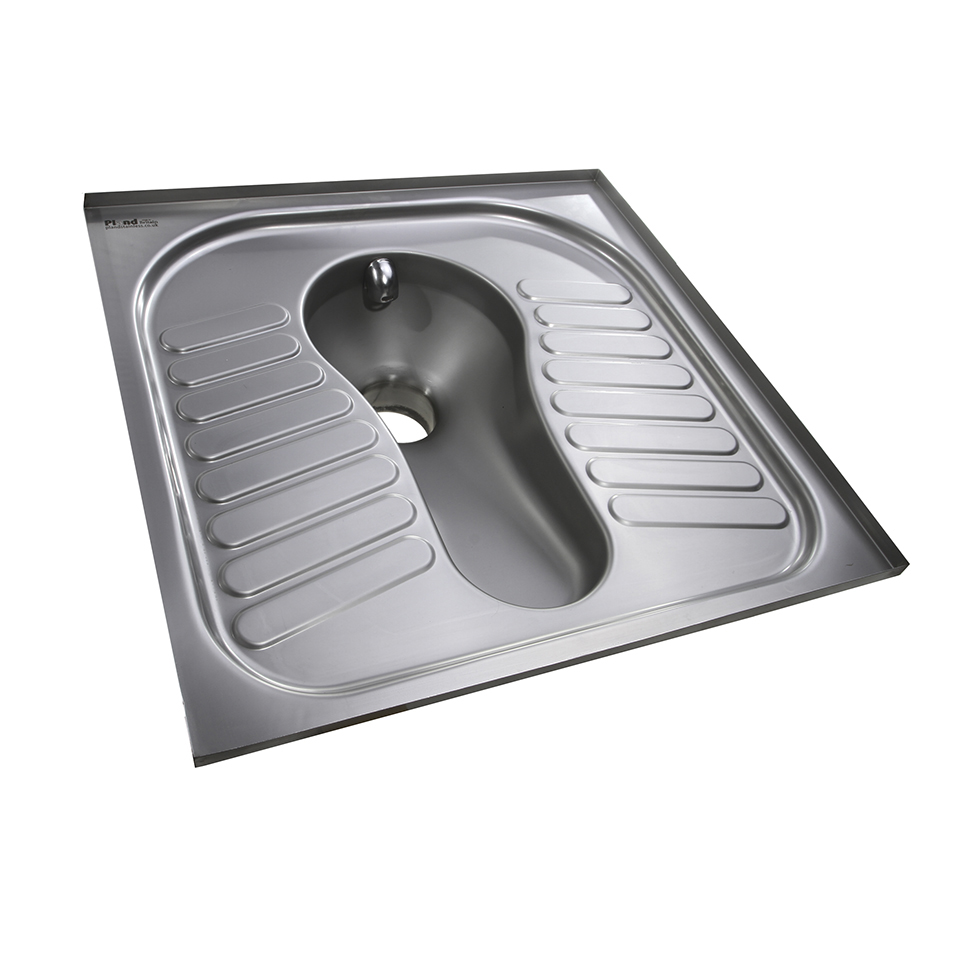

Istanbul Stainless Steel Squat WC Range
The Istanbul Stainless Steel Squat WC Range is a durable and hygienic sanitaryware solution designed for public washrooms, transport facilities, commercial premises and high-traffic environments. Manufactured from 1.2mm thick 304 stainless steel, the range provides excellent strength, reliability and corrosion resistance.
Designed for modern commercial and institutional washrooms, the Istanbul range is available with one, two or three horizontal flushing injectors to suit different installation requirements and flushing performance specifications. The pressed stainless steel construction delivers a robust and long-lasting solution while maintaining a hygienic and easy-to-clean surface.
The unit is designed for floor installation and incorporates a 101.6mm outlet spigot suitable for connection to standard floor drain traps. Depending on the selected model, water inlet connections are available via either a cistern-fed connection or a ½" water supply connection.
Ideal for transport hubs, public conveniences, educational establishments, industrial facilities and commercial buildings, the Istanbul range provides a practical and vandal-resistant alternative to conventional ceramic sanitaryware. A 316 grade stainless steel version is also available on request for environments requiring enhanced corrosion resistance.
Key Features
- Stainless steel squat WC range
- Pressed stainless steel construction
- 304 grade stainless steel
- Satin finish
- One, two or three injector options
- Floor-mounted installation
- Hygienic easy-clean design
- Corrosion resistant
- Heavy-duty commercial construction
- Suitable for high-traffic environments
- Compatible with standard floor drain traps
- Optional 316 grade version available
Specifications
- Range: Istanbul
- Product Type: Squat WC
- Material: 304 Stainless Steel (1.4301)
- Thickness: 1.2mm
- Finish: Satin

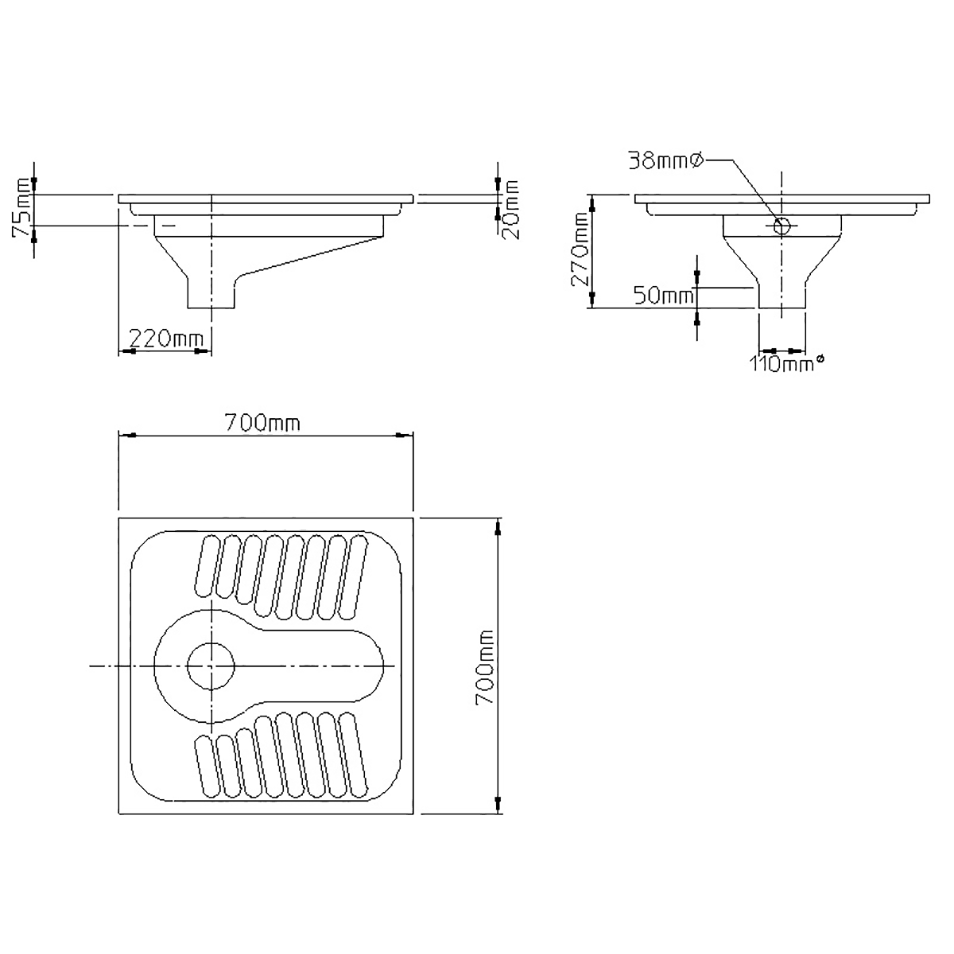

- Dimensions: 700mm × 700mm × 135/200mm
- Outlet Size: 101.6mm Diameter
- Installation Type: Floor Mounted
Available Configurations
| Product Code | Configuration |
|---|---|
| WC1800 | Single Injector |
| WC1800-2S | Two Injectors |
| WC1800-3S | Three Injectors |
Inlet Connections
- Single Injector: 1" Inlet
- Two Injector: ½" Inlet
- Three Injector: ½" Inlet
Ideal Applications
- Public washrooms
- Transport facilities
- Educational buildings
- Commercial premises
- Religious buildings
- Sports facilities
- Industrial facilities
- Leisure centres
- High-traffic public areas
- International travel hubs
Technical Details
- 1.4301 1.2 mm 304 SS
- Satin
- ⌀ 101.6 mm
- 1"
- ½"
- ½"
- 700 x 700 x 135/200 mm
