Jersey HTM64 Sit-On Hospital Sink Top
Product description
Configurable HTM64 stainless steel sit-on hospital sink top range with single, double and multiple bowl configurations for healthcare environments.
The Jersey HTM64 Sit-On Hospital Sink Top range is designed for hospitals, healthcare facilities, surgeries, nursing homes and clinical environments where durability, hygiene and compliance are essential. Manufactured from high-quality 304 stainless steel, the range delivers reliable long-term performance while meeting the requirements of HTM64 sanitary assemblies.
Featuring bright polished bowls and satin polished sink tops, the Jersey range combines practical functionality with a professional appearance. Sound deadening pads and an integral earth tag are fitted as standard, helping improve usability and supporting healthcare installation requirements.

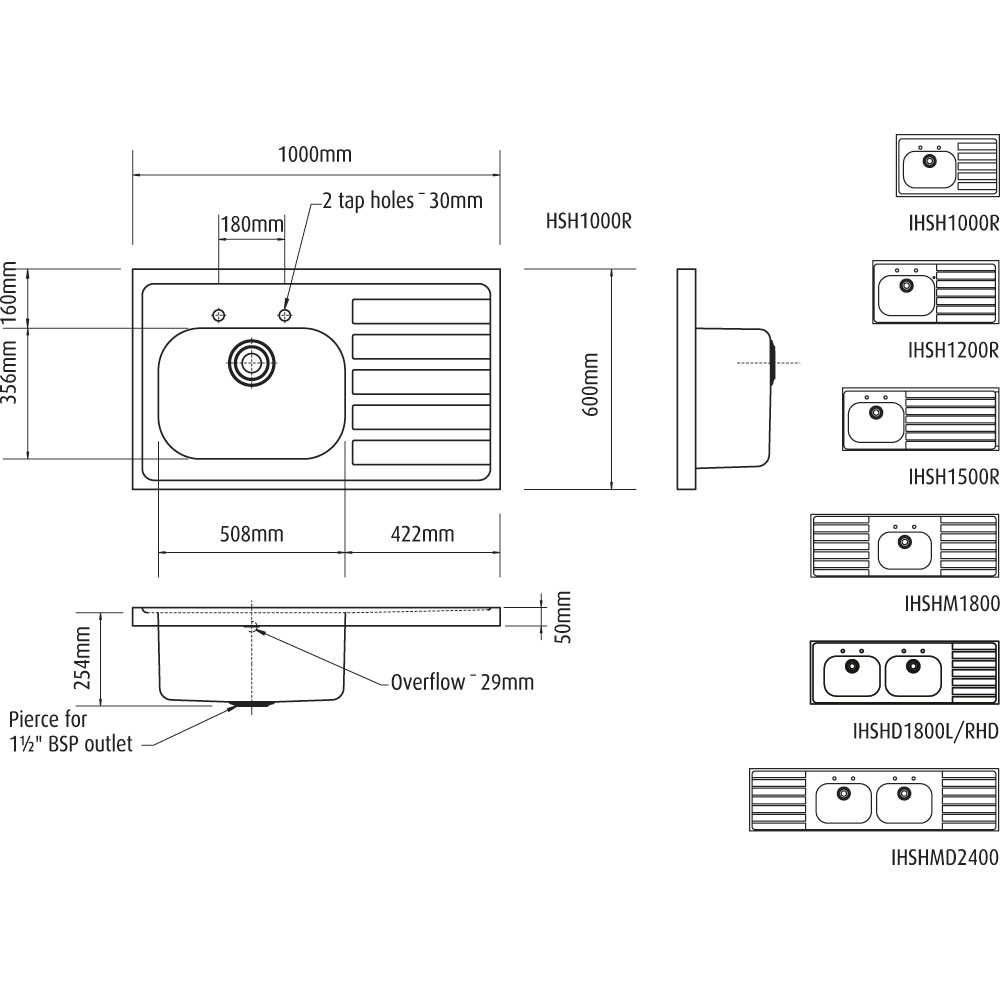

All sink tops feature a 50mm downturn for wall-mounted or freestanding installations together with a safety return front edge. Tap holes are available at either 180mm or 200mm centres, providing flexibility for compatible healthcare tap installations.
The range includes multiple configurations including left-hand drainer, right-hand drainer, double bowl and multi-user sink layouts. Available with either softwood subframes or stainless steel underframes, Jersey sink tops provide a versatile solution for a wide variety of healthcare projects.
Key Features
- HTM64 sit-on hospital sink top
- 304 stainless steel construction
- Satin polished finish
- Bright polished bowl
- Integral earth tag
- Sound deadening pads fitted
- 50mm downturn edge
- Safety return front edge
- 180mm or 200mm tap hole centres
- Multiple sink configurations available
- Overflow fitted as standard
- HTM64 compliant
Specifications
- Range: Jersey
- Product Type: HTM64 Sit-On Hospital Sink Top
- Material: 304 Stainless Steel (1.4301)
- Gauge: 1.2mm / 0.9mm
- Finish: Satin Polished
- Bowl Size: 533mm × 381mm × 200mm
- Waste Outlet: 1½"
- Overflow: Yes (No Overflow Option Available)
- Downturn: 50mm
- Standard: HTM64 / CE
Available Configurations
| Product Code | Configuration |
|---|---|
| IHSH1000L | Single Bowl, Left-Hand Drainer |
| IHSH1000R | Single Bowl, Right-Hand Drainer |
| IHSH1200L | Single Bowl, Left-Hand Drainer |
| IHSH1200R | Single Bowl, Right-Hand Drainer |
| IHSH1500L | Single Bowl, Left-Hand Drainer |
| IHSH1500R | Single Bowl, Right-Hand Drainer |

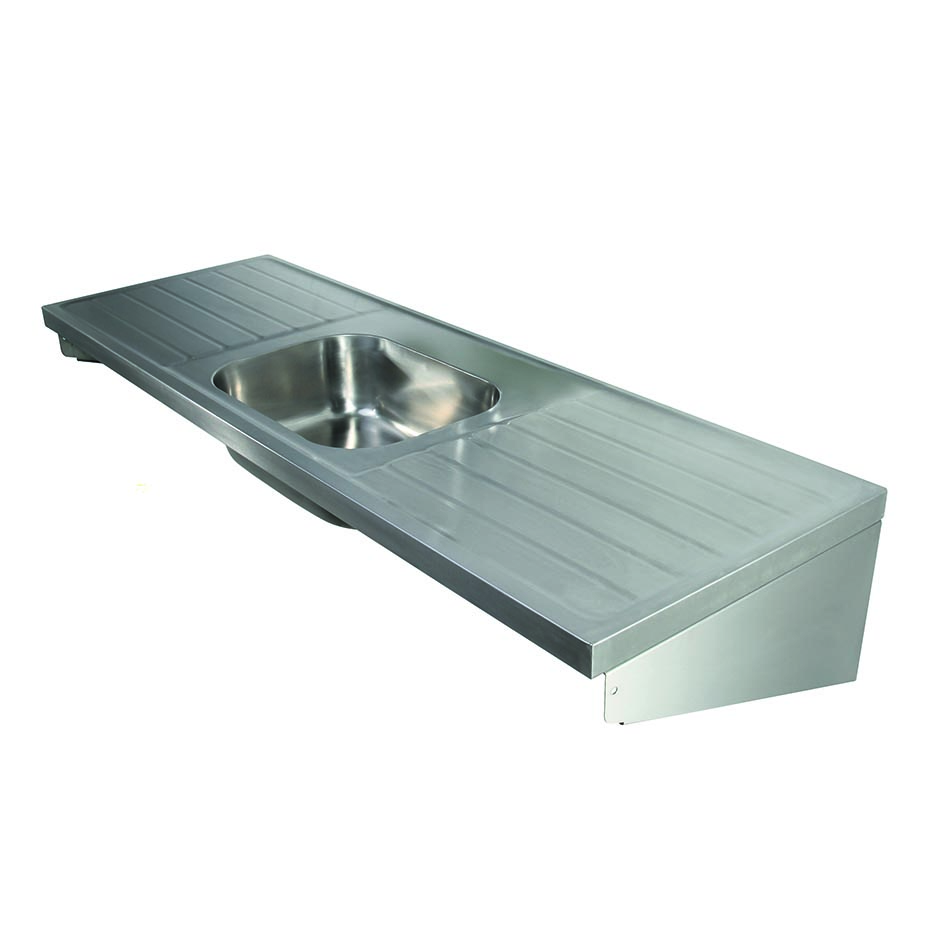

| IHSHM1500 | Multi-User Sink Top |

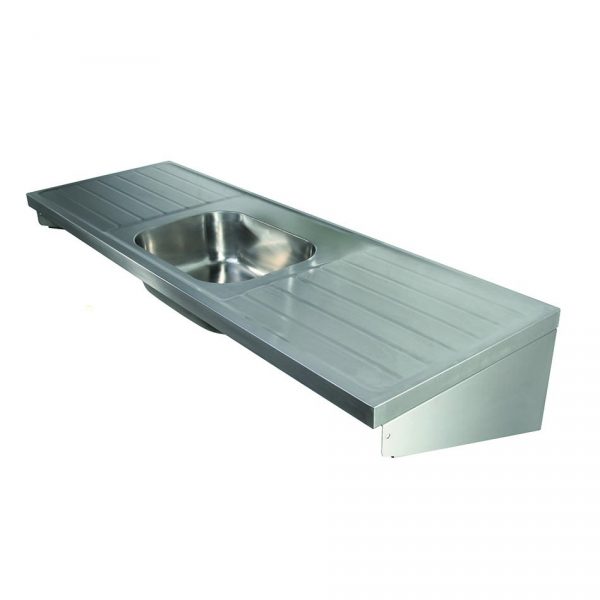

| IHSHM1800 | Multi-User Sink Top |

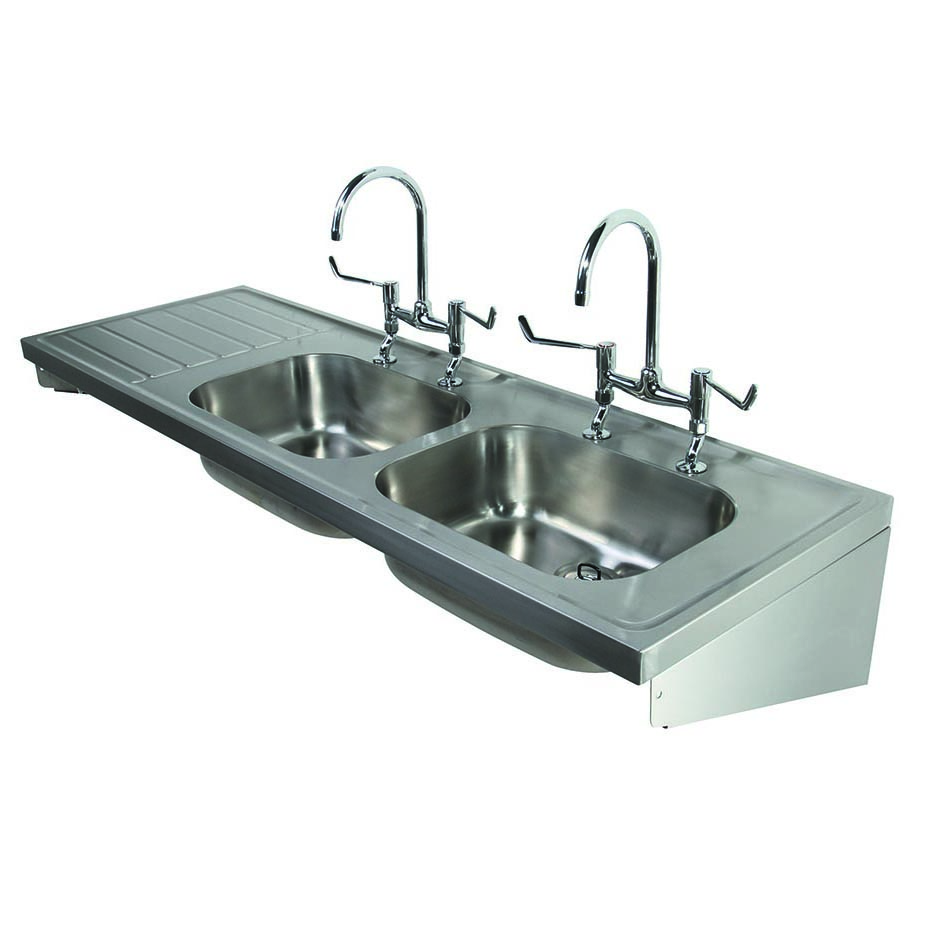

| IHSHD1800L | Double Bowl, Left-Hand Drainer |

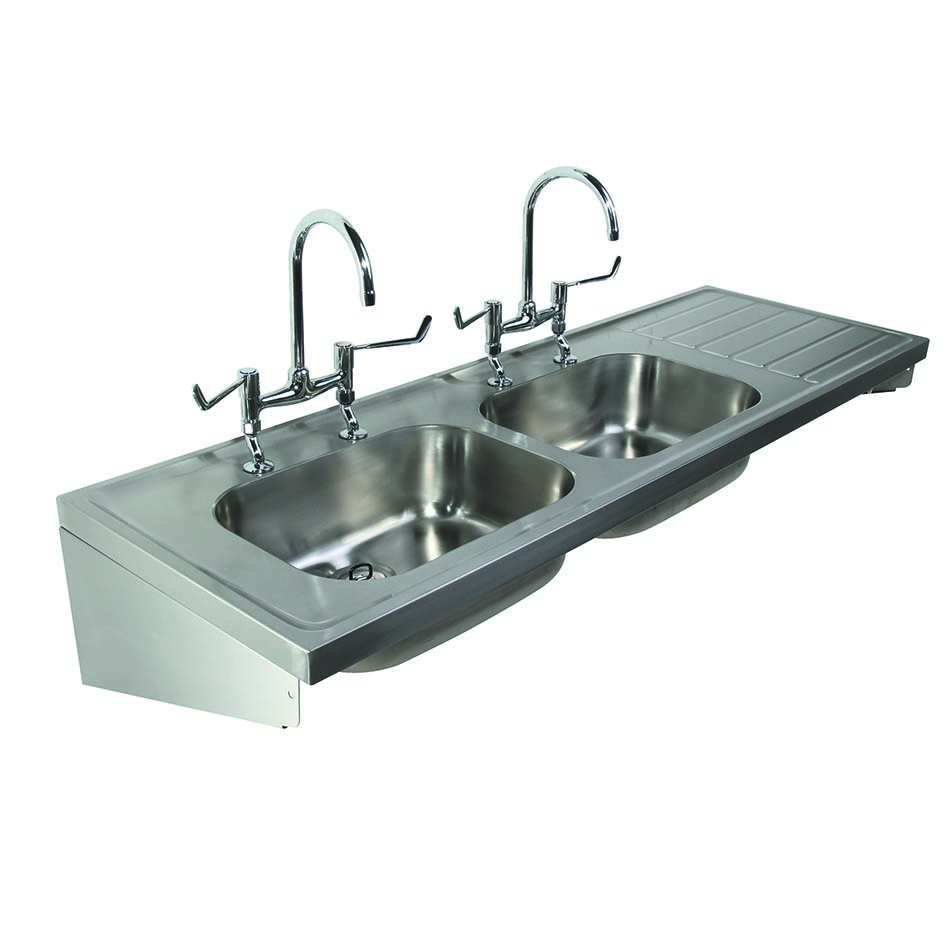

| IHSHD1800R | Double Bowl, Right-Hand Drainer |
| IHSHMD2400 | Multi-User Double Bowl Sink Top |
Ideal Applications
- Hospitals
- Healthcare facilities
- Surgeries
- Nursing homes
- Treatment rooms
- Clinical environments
- Medical centres
- Accident and emergency departments
Technical Details
- 1
- 1.2 / 0.9 mm
- Satin Polished
- 533 x 381 x 200 mm Bright Polished
- 1 1/2"
- Yes (No overflow optional)
- HTM64 / CE
