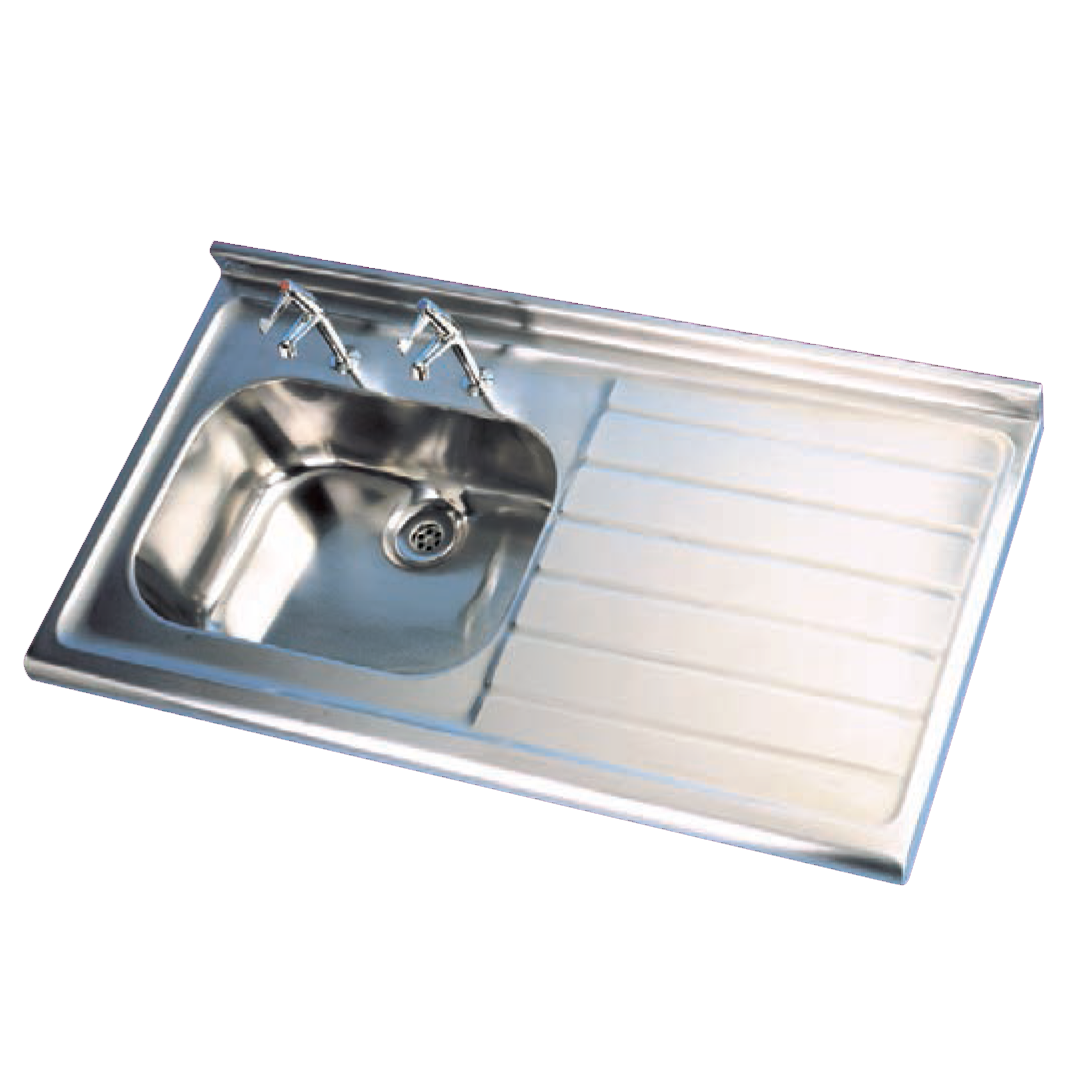

Sicily HTM63 Sit-On Hospital Sinktop
The Sicily HTM63 Sit-On Hospital Sinktop range is designed specifically for healthcare environments requiring durable, hygienic and compliant washing facilities. Manufactured from high-quality 304 stainless steel, the sinktops are produced to the size and profile requirements of HTM63 fitted storage systems.
Featuring a 550mm projection, each sinktop incorporates a safe bullnose front edge, 50mm rear upstand and pressed drainer design to provide a practical and hygienic work surface. The robust stainless steel construction delivers excellent durability, corrosion resistance and ease of cleaning, making it ideal for demanding healthcare environments.
Each unit includes sound deadening pads, an integral earth tag and tap hole options at either 180mm or 200mm centres. Sinktops can be supplied with either a timber underframe for cabinet installation or a metal underframe when specified with optional legs or wall mounting brackets.
Available in a range of configurations including left-hand drainer, right-hand drainer and double drainer models, the Sicily range provides flexibility for hospitals, healthcare facilities and clinical support areas.
Key Features
- HTM63 sit-on hospital sinktop
- 304 stainless steel construction
- Satin polished finish
- Pressed drainer design
- Safe bullnose front edge
- 50mm rear upstand
- Sound deadening pads fitted
- Integral earth tag
- Tap holes at 180mm or 200mm centres
- Single or double drainer configurations
- Cabinet or bracket mounted installation options
Specifications
- Range: Sicily
- Product Type: HTM63 Sit-On Sinktop
- Material: 304 Stainless Steel (1.4301)
- Gauge: 1.2mm / 0.9mm
- Finish: Satin Polished
- Projection: 550mm
- Bowl Size: 432mm × 356mm × 180mm
- Waste Outlet: 1½"
- Overflow: Yes (No Overflow Option Available)
- Upstand: 50mm
- Front Edge: 55mm Bullnose Downturn
- Tile Return: 20mm
- Standard: HTM63 / CE
Available Configurations
| Product Code | Configuration |
|---|---|
| HS1055SL63 | Single Bowl, Left-Hand Drainer |
| HS1055SR63 | Single Bowl, Right-Hand Drainer |
| HS1255SD63 | Single Bowl, Double Drainer |
| HS1655SD63 | Single Bowl, Double Drainer |
| HS1855SD63 | Single Bowl, Double Drainer |
Optional Accessories
- WK0187 Waste with Overflow
- WK0075 Waste without Overflow
- SHB0600R Right-Hand Wall Bracket
- SHB0600L Left-Hand Wall Bracket
- SC63/7/MU Stainless Steel Legs and Bearer Brackets
Ideal Applications
- Hospitals
- Healthcare facilities
- Clinical environments
- Treatment rooms
- Utility rooms
- Medical centres
- Laboratory support areas
- Healthcare accommodation

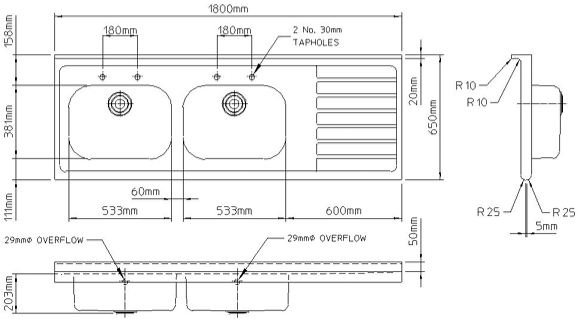

Technical Details
- 1.4301 304 SS
- 1.2 / 0.9 mm
- Satin Polished
- 533 x 381 x 200 mm Bright Polished
- 1 ½"
- Yes (No overflow optional)
- HTM63 / CE
