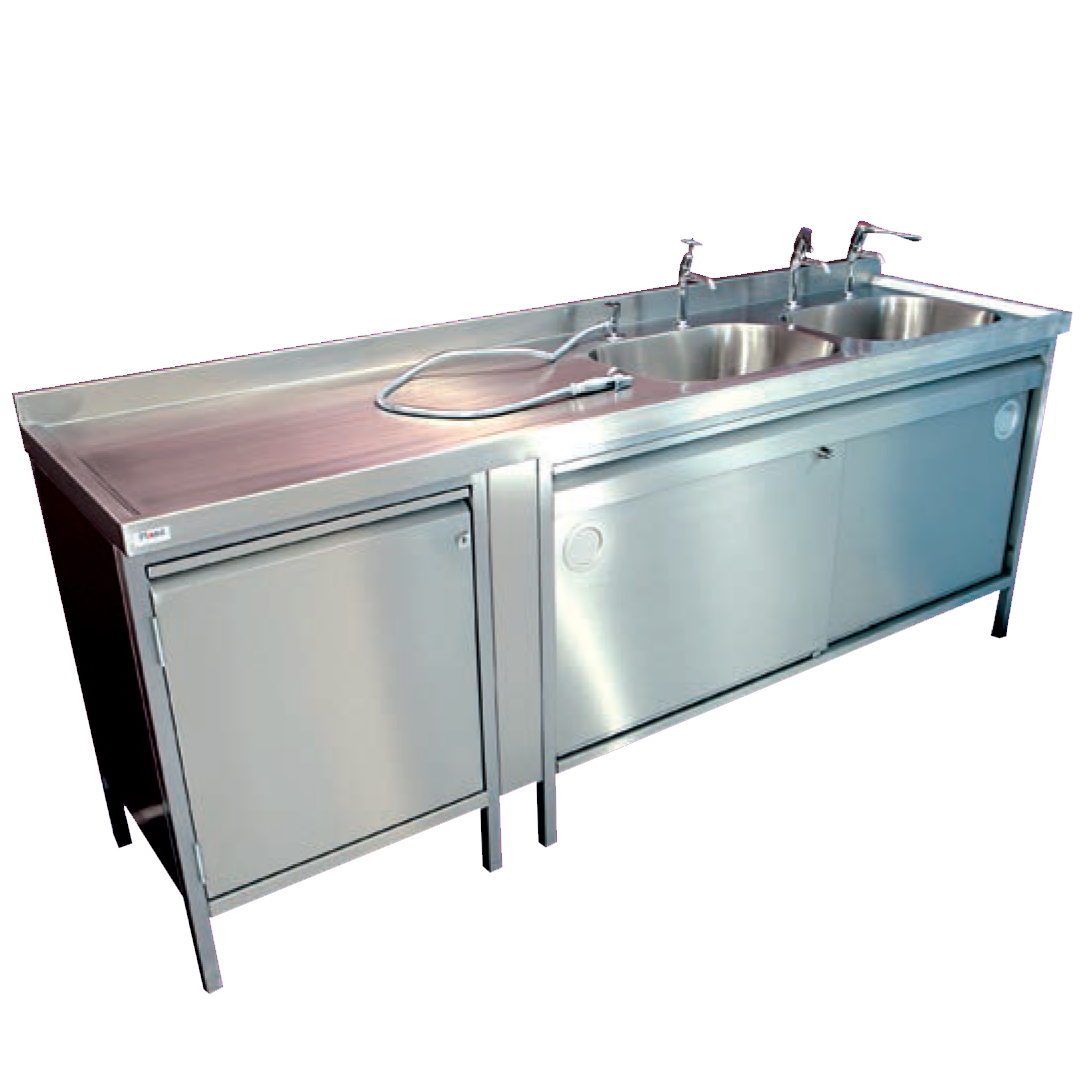

Grenada SIN110 Endoscopy Sink
The Grenada SIN110 Endoscopy Sink is a specialist stainless steel washing station designed to meet the requirements of healthcare and endoscopy decontamination environments. Manufactured from premium grade 316 stainless steel, it provides outstanding corrosion resistance, durability and hygiene performance in demanding clinical settings.
Designed in accordance with SIN110 endoscopy sink requirements, the Grenada features a double bowl configuration with the option of either a left-hand or right-hand drainer layout. The spacious bowls provide ample capacity for cleaning and handling endoscopy equipment while supporting effective infection prevention procedures.
The sink is supplied complete with integrated stainless steel base units, offering practical storage space for consumables, cleaning products and associated equipment. The base cabinetry includes sliding and hinged door cupboards, adjustable levelling feet, sound deadening pads and an earth tag for enhanced functionality and safety.
Constructed for long-term clinical use, the Grenada features a satin polished finish, floor-standing installation and configurable tap hole arrangements to suit site-specific requirements. Additional sizes and bespoke configurations are also available for specialist healthcare projects.
Key Features
- SIN110 compliant endoscopy sink
- Double bowl configuration
- 316 stainless steel sink construction
- Satin polished finish
- Left-hand or right-hand drainer options
- Integrated stainless steel storage cabinets
- Sliding and hinged cupboard doors
- Adjustable levelling feet
- Sound deadening pads fitted
- Floor standing installation
- CE marked
Specifications
- Range: Grenada
- Product Type: Endoscopy Sink
- Material: 316 Stainless Steel Sink with 304 Stainless Steel Base Units
- Finish: Satin Polished

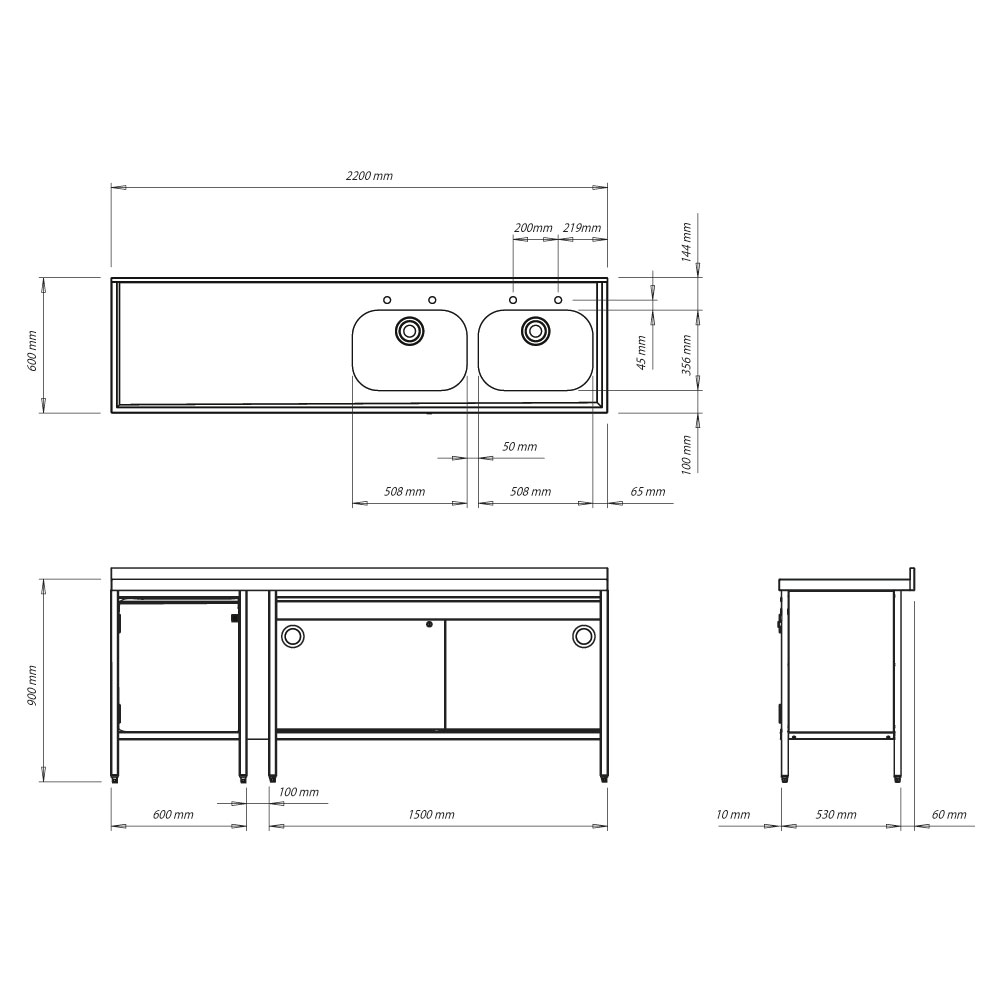

- Overall Size: 2200mm x 600mm
- Bowl Size: 508mm x 356mm x 180mm Deep
- Waste Outlet: 1½" BSP
- Overflow: No
- Tap Holes: 2 x 30mm Diameter at 200mm Centres Above Each Bowl
- Working Height: 900mm (-5/+20mm)
- Installation Type: Floor Standing
- Earth Tag: Yes
- CE Marked: Yes
Available Configurations
- HSEN2260DL – Double Bowl with Left-Hand Drainer
- HSEN2260DR – Double Bowl with Right-Hand Drainer
Ideal Applications
- Endoscopy departments
- Hospital decontamination rooms
- Sterile services departments
- Healthcare facilities
- Medical laboratories
- Clinical treatment areas
- Specialist healthcare environments
- Infection control facilities
Technical Details
- 1.4401 316 SS
- 1.4301 304 SS
- 1.5 / 1.2 / 0.9 mm
- Satin Polished
- 1 ½" Bsp
- No
- Floor standing
- HTM64, CE
