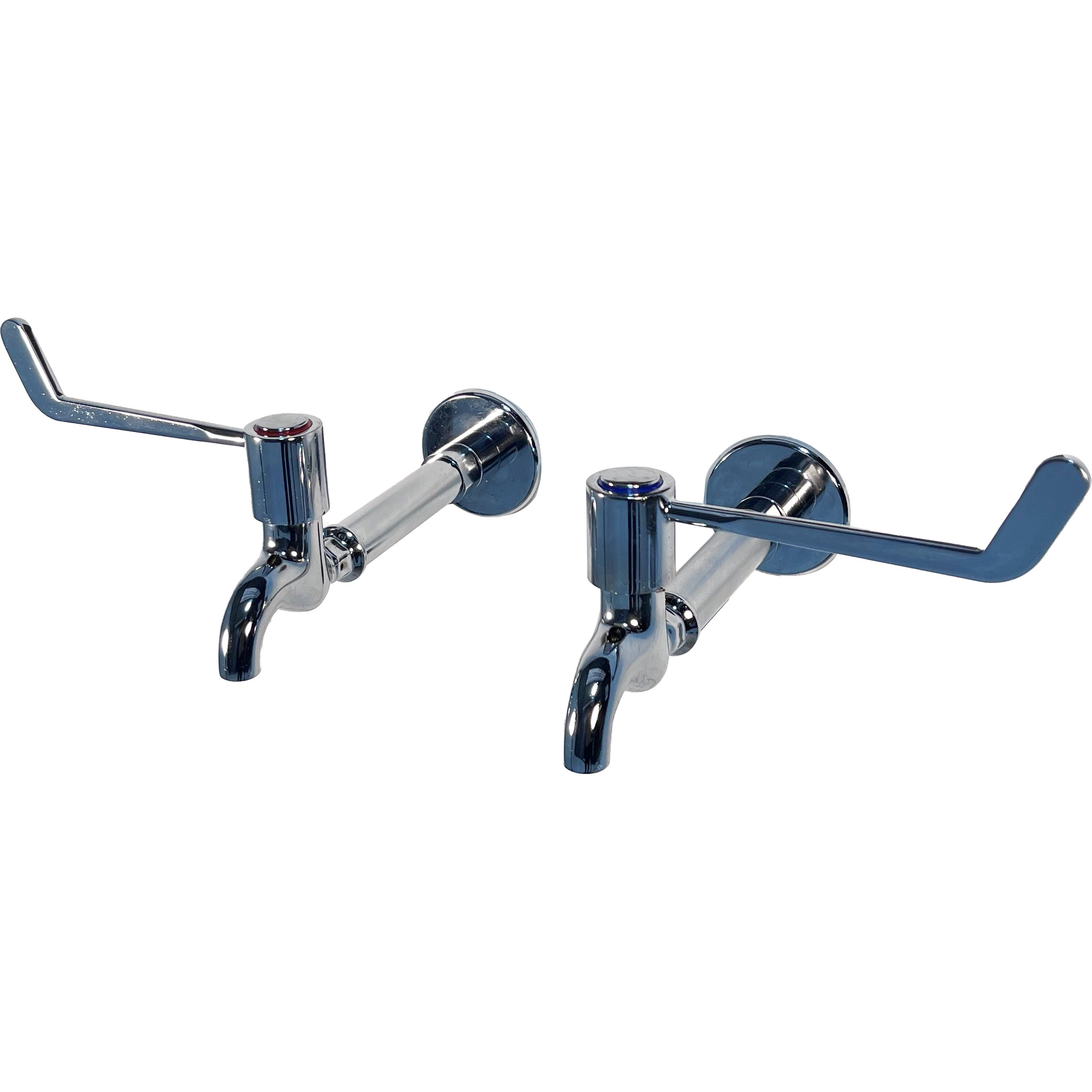

Dee Wall Mounted Bib Taps – 170mm Lever Handles

Product description

Wall mounted bib taps (TP1005) with 170mm lever handles and 100mm extension. WRAS approved, designed for healthcare environments. Operates from 0.1–5.0 bar pressure.

Compare

Dee Wall Mounted Bib Taps – Reliable, Hygienic & Built for Healthcare Use

The Dee Wall Mounted Bib Taps are specifically designed for demanding healthcare and clinical environments, offering durability, hygiene, and precise control.

Constructed from high-quality brass with a bright polished finish, these taps deliver long-lasting performance while maintaining a clean, professional appearance. The wall-mounted design ensures easy cleaning around sink areas, helping to meet strict hygiene standards in hospitals and clinical settings.

Featuring extended 170mm lever handles, the TP1005 allows for effortless operation, even when using elbows or forearms—ideal for environments where minimising hand contact is essential. The 100mm wall extension provides practical reach into basins, ensuring effective usability across a wide range of sink configurations.

With WRAS approval and compatibility with systems operating between 0.1 and 5.0 bar pressure, these bib taps are suitable for both low and high-pressure installations.

Designed for reliability and ease of use, the TP1005 is a trusted solution for professional wash areas where performance and hygiene are critical.


Key Features & Benefits

  • Wall Mounted Design – Improves hygiene and simplifies cleaning
  • 170mm Lever Handles – Easy operation, ideal for healthcare use
  • WRAS Approved – Complies with UK water regulations
  • 100mm Extension – Practical reach into basins
  • Brass Construction – Durable and long-lasting
  • Bright Polished Finish – Clean, professional appearance
  • Wide Pressure Range – Works from 0.1 to 5.0 bar
  • Clinical Use Ready – Designed for hospitals and healthcare settings

Specifications

  • Product: Dee
  • Code: TP1005
  • Type: Wall mounted bib taps
  • Finish: Bright polished
  • Material: Brass body & back nut
  • Fixing: Wall mounted
  • WRAS Approved: Yes
  • Extension: 100mm
  • Lever Length: 170mm
  • Inlet Connections: ½” BSP
  • Working Pressure: 0.1 – 5.0 bar

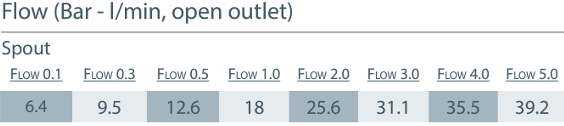

Flow Rates (Open Outlet)

  • 0.1 bar: 6.4 L/min
  • 0.3 bar: 9.5 L/min
  • 0.5 bar: 12.6 L/min
  • 1.0 bar: 18 L/min
  • 2.0 bar: 25.6 L/min
  • 3.0 bar: 31.1 L/min
  • 4.0 bar: 35.5 L/min
  • 5.0 bar: 39.2 L/min

Ideal Applications

  • Hospitals and healthcare facilities
  • Clinical washrooms
  • Laboratories
  • Care homes
  • Commercial wash areas

,

Technical Details

  • Bright Polished
  • Brass
  • Brass
  • Wall Mounted
  • Yes
  • 100 mm
  • 170 mm
  • Hospitals and Clinical Areas
  • ½" Bsp
  • 0.1-5 bar

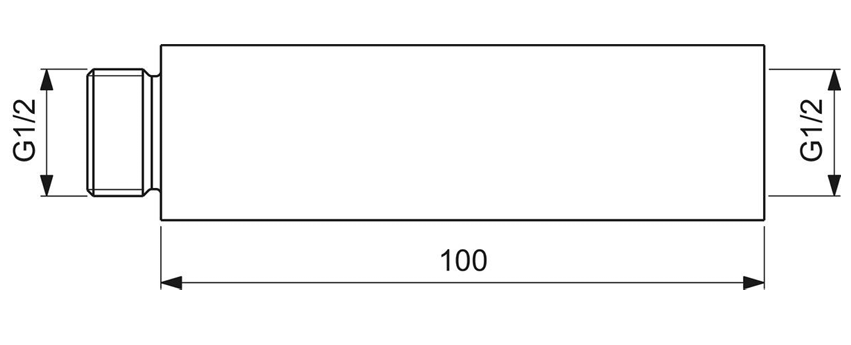

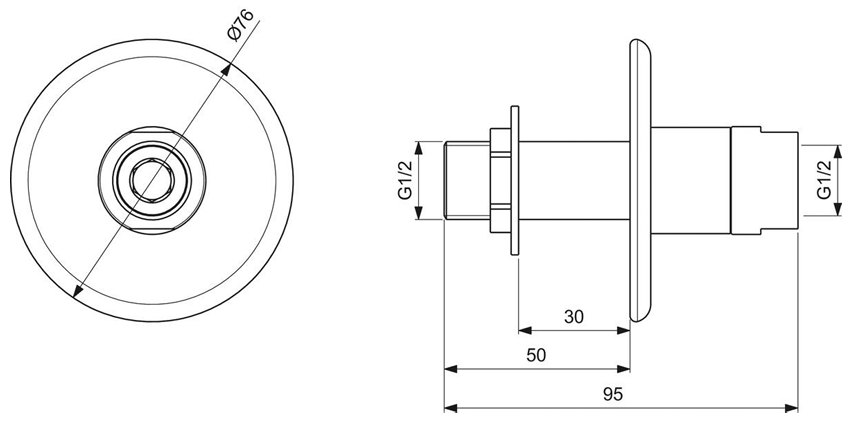

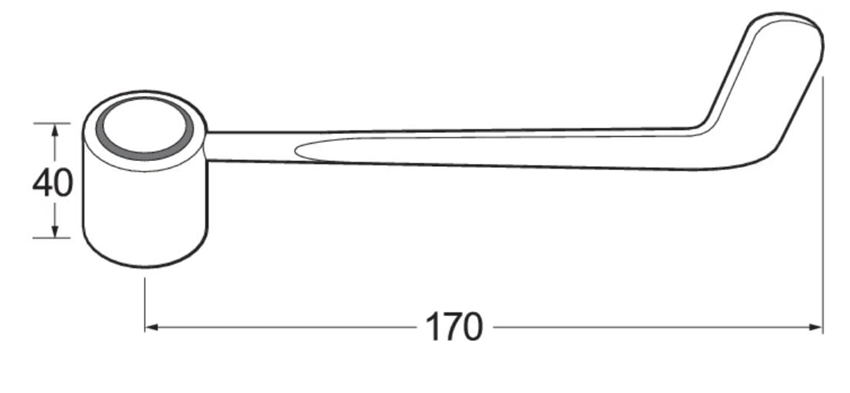

Technical Drawings
