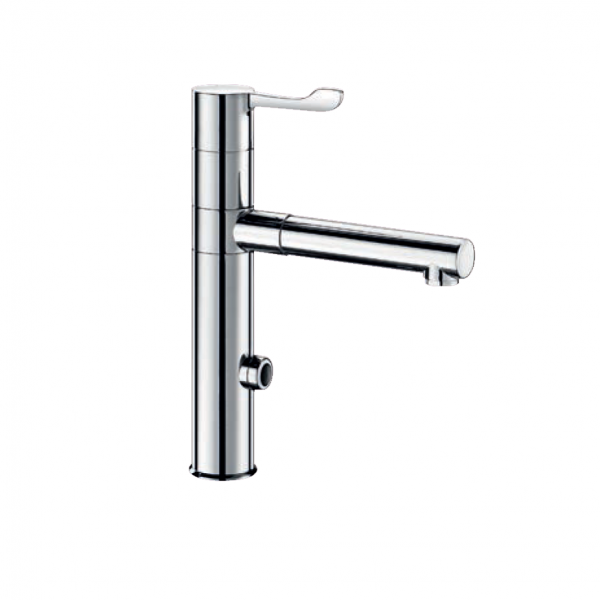

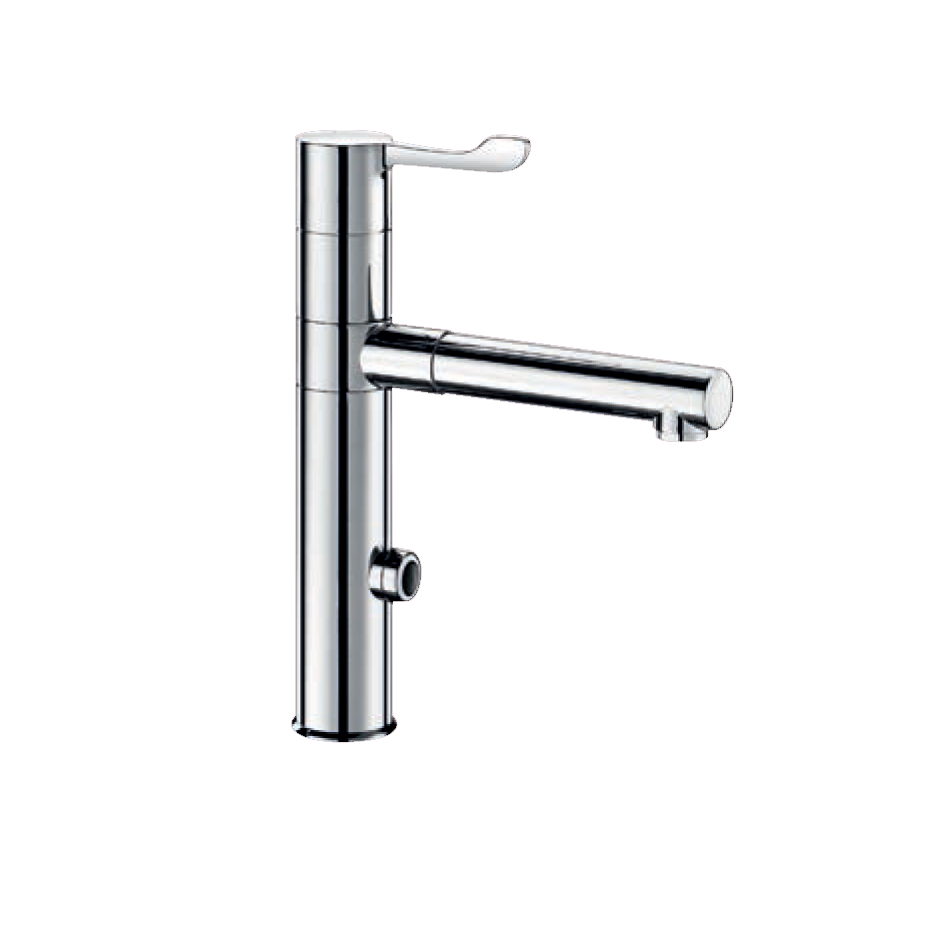

Darwen Electronic Sensor Tap
The Darwen Electronic Sensor Tap is a hygienic touch-free washroom solution designed for healthcare facilities, hospitals, clinical environments and commercial washrooms. Featuring advanced infrared sensor operation, the tap helps reduce hand contact with surfaces, supporting improved hygiene standards and infection control procedures.
Designed for applications where cleanliness and user safety are essential, the Darwen incorporates manual temperature adjustment via an integrated control lever. This allows water temperature to be set precisely while maintaining the convenience of automatic sensor activation.
The tap is supplied with a removable 304 stainless steel spout as standard, allowing easy removal for internal cleaning and descaling. A Hostaform spout option is also available. Smooth internal waterways, a flow straightener and anti-blocking protection help maintain reliable operation and support ongoing hygiene management.
An adjustable automatic duty flush function helps maintain water quality by periodically purging the system after inactivity. Combined with mains-powered operation, WRAS approval and robust brass construction, the Darwen Electronic Sensor Tap provides dependable performance for demanding healthcare and commercial environments.
Key Features
- Electronic sensor mixer tap
- Touch-free operation
- Adjustable temperature control lever
- Removable stainless steel spout
- Optional Hostaform spout
- Infrared presence detector
- Adjustable duty flush function
- Smooth internal waterways
- Anti-blocking protection
- WRAS approved
Specifications
- Range: Darwen
- Product Code: TP1140S
- Product Type: Electronic Sensor Tap
- Body Material: Brass
- Spout Material: 304 Stainless Steel (1.4301)
- Finish: Chrome Plated
- Flow Rate: 5 Litres per Minute at 3 Bar
- Sensor Type: Shock Resistant Infrared Presence Detector
- Power Supply: Mains Powered
- Control Unit: IP65 Electronic Control Unit
- Transformer: Integrated 230V / 12V
- Duty Flush: Adjustable Automatic Flush
- WRAS Approved: Yes
Ideal Applications
- Hospitals
- Healthcare facilities
- Surgical wash areas
- Medical centres
- Clinical environments
- Care homes
- Laboratories
- Commercial washrooms
Technical Details
- Brass
- 1.4301 304 SS
- Chrome Plated
- Shock resistant infrared
- Mains, Independent IP65 Electronic Control Unit (Integrated 230/12v Transformer)
- Removable Spout for Internal Cleaning and Descaling. Body And Spout Have Smooth Interiors. Flow Straightener. Anti-Blocking Security. Adjustable Duty Flush. Two shut-off options: Standard mode - timed flow with automatic shut-off; or ON/OFF mode - user shuts off flow voluntarily or automatic shut-off after 30 minutes.
- Yes
