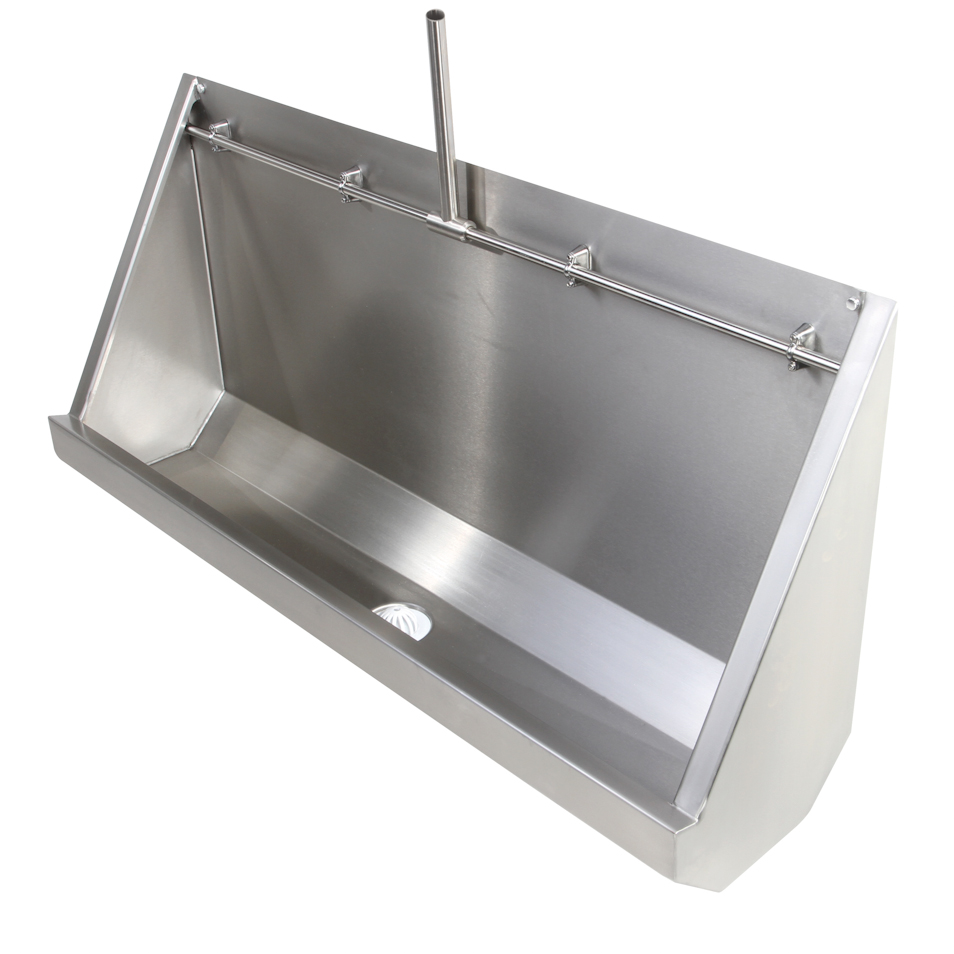

Bruge Stainless Steel Trough Urinal Pack

Supplied as a complete pack, the unit includes a plastic cistern, stainless steel sparge flushing pipe, sparge locating clips and a central 2" domed plastic urinal waste outlet. This complete package simplifies specification and installation while providing a reliable flushing solution for busy washroom facilities.

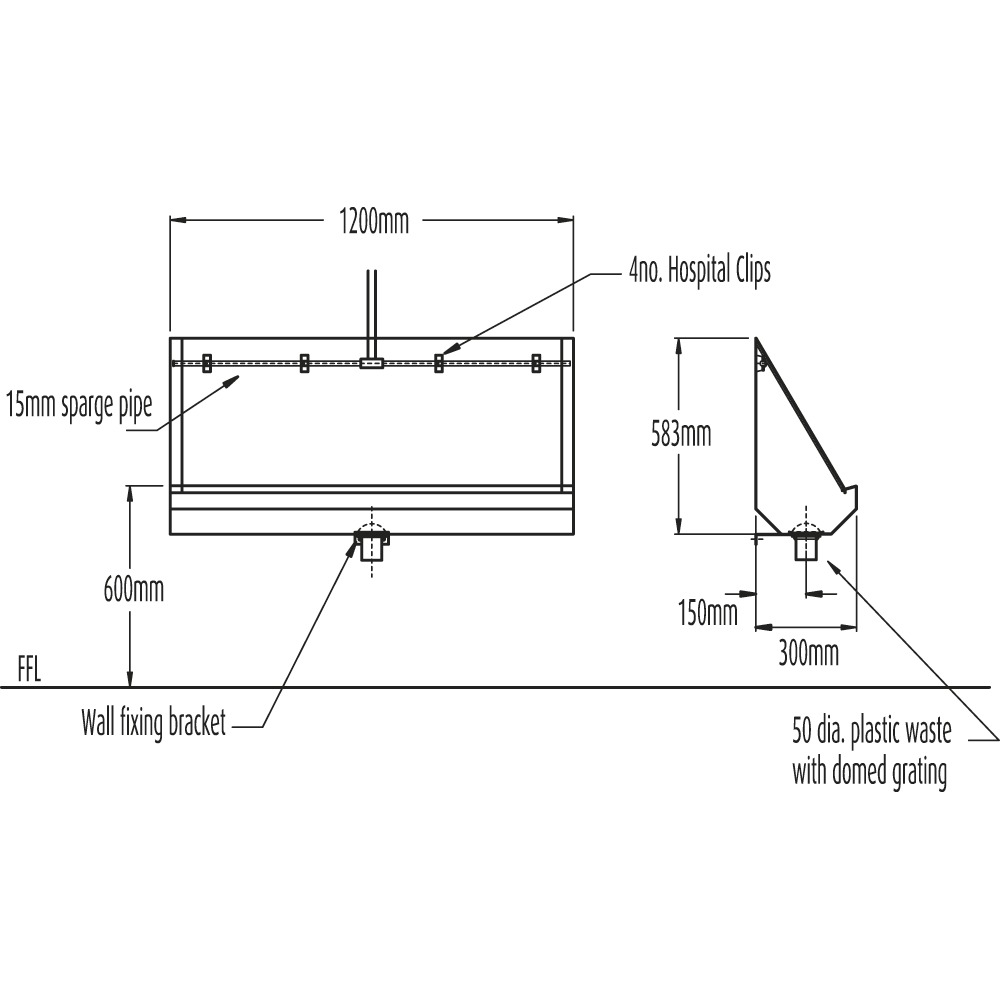

Designed for wall-mounted installation, the trough urinal can be secured using rear fixing points and a dedicated wall mounting bracket positioned beneath the waste outlet. The robust construction and hygienic stainless steel finish make it suitable for demanding environments where ease of cleaning and maintenance are essential.

Available in multiple lengths, the Bruge trough urinal can also accommodate multiple-unit installations and L-shaped configurations. Bespoke sizes are available on request, making it a flexible solution for a wide range of washroom layouts.

Key Features

• Complete trough urinal pack
• Manufactured from 304 stainless steel
• Satin polished finish
• Plastic cistern included
• Stainless steel sparge flushing pipe
• Sparge locating clips included
• Central domed plastic waste outlet
• Wall mounted installation
• Multiple and L-shaped configurations available
• Bespoke sizes available on request

Specifications

• Range: Bruge
• Product Type: Trough Urinal Pack
• Material: 304 Stainless Steel (1.4301)
• Gauge: 1.2mm
• Finish: Satin Polished
• Waste Connection: 1½" BSP
• Waste Outlet: Central Domed Plastic Urinal Waste
• Installation Type: Wall Mounted
• Flushing System: Stainless Steel Sparge Pipe
• Cistern: Plastic Cistern Included
• Trap Shroud: Optional

Ideal Applications

• Schools and colleges
• Commercial washrooms
• Public toilets
• Leisure centres
• Industrial facilities
• Sports venues
• High-traffic washrooms
